The tab allows to set the hardware button on different models of controllers with specific functions in order to be faster and more productive in the field.
-
Click Settings.
-
Click Function keys.
-
Depending on the used controller, there are different function keys to customize.
-

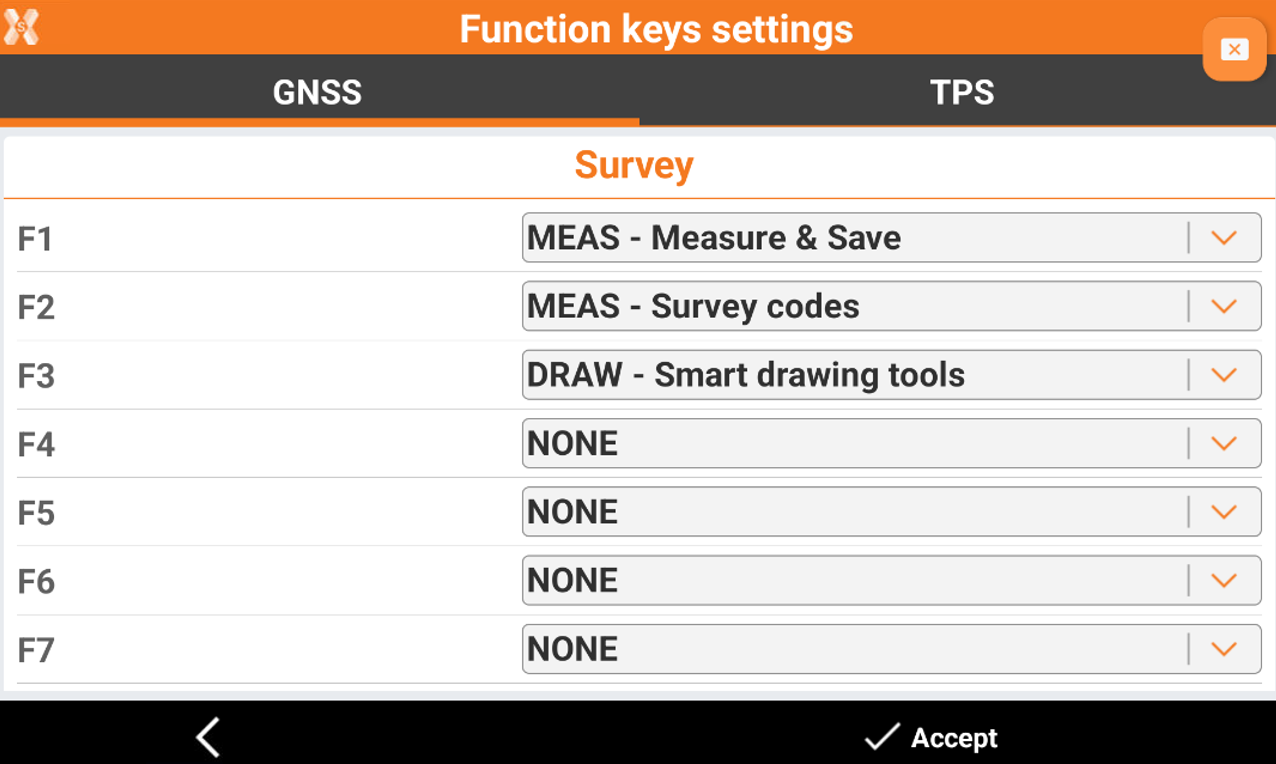

Click on the corresponding function key to configure it for Survey or Stakeout applications, for GNSS or TPS instrument.

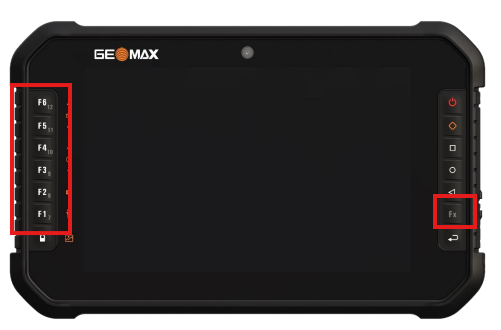

Zenius08 controller
-
Zenius08 controller allows to customize 12 function buttons. F1-F6 can be used simply pressing the corresponding hardware button on the controller. F7-F12 can be used pressing the hardware button Fx and the corresponding hardware button on the controller.

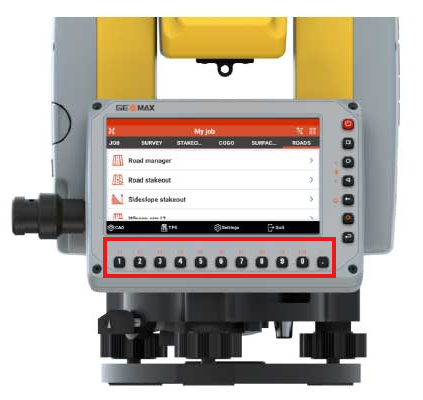

Zoom45 total station
-
When the software is installed on the Zoom45 Android total station it is possible to customize the 10 function keys.

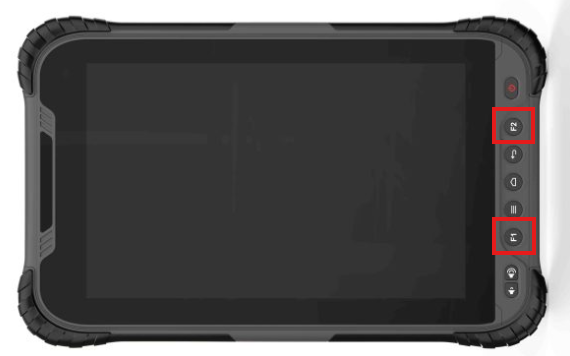

Zenius800 controller
-
Zenius800 controller allows to set the F1 and F2 hardware button.

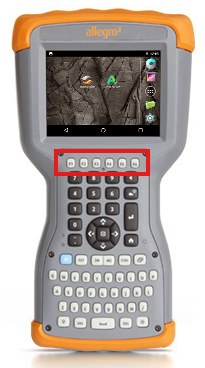

Juniper Allegro3 Android controller
-
The Juniper Allegro3 Android controller is supported by X-PAD Ultimate. Many of the physical keys can be used to control the software.
-
The six functions keys can be customized as shortcut to activate some commands and options.
Samsung Active Android controller
-
The Samsung Active Android controller has an active button that can be customized to control the software.
Nautiz X6
-
The software allows to configure the 4 function keys for the Nautiz X6 Android controller.
ALPS H6BM
-
The software allows to configure the 11 function keys for the ALPS H6BM Android controller.
SOUTH H6LM
-
The software allows to configure the 11 function keys for the South H6LM Android controller.
PCR500
-
The software allows to configure the 4 function keys for the PCR500 Android controller.
A-Tab
-
The software allows to configure the function keys for the A-Tab Android controller.
