Reference axis

X-PAD Ultimate Survey 1.png + BUILD | X-PAD Ultimate Build 1.png

  • The system is created based on the measurement of a point of origin and the measurement of a second point which defines the direction of the axis.


  • From GNSS localization select Reference axis.

  • Click Next.

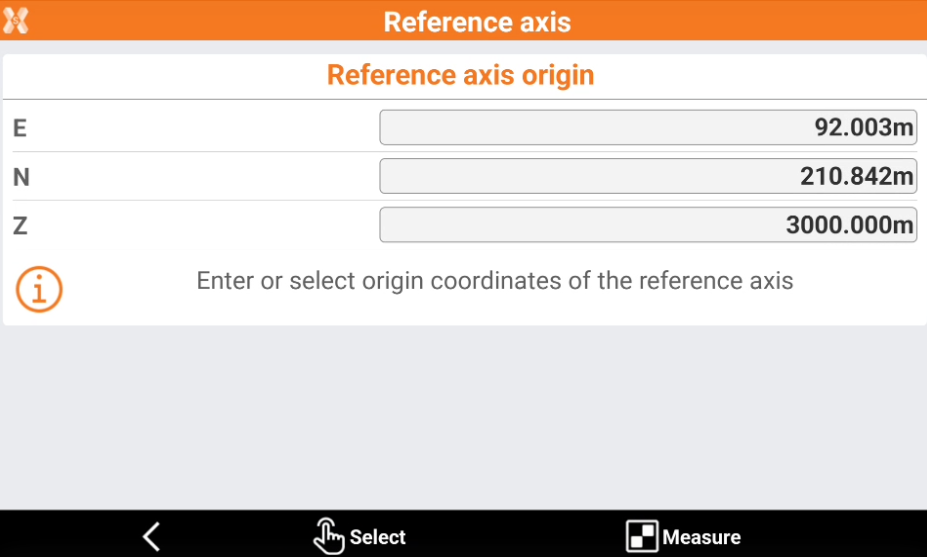

  • Enter the coordinates for the Reference axis origin.

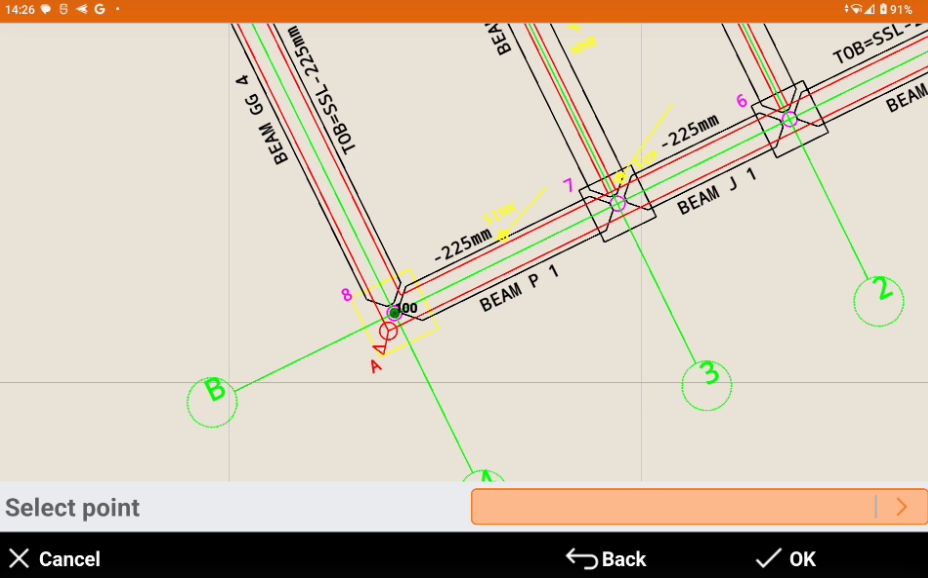

  • Click Select to choose the same point from the CAD window.


  • Click Measure to measure the reference point with the current GNSS profile.

  • Click Measure also in the following page to define the direction of the reference axis.

  • Select the calculation method to be used for elevation and click Accept.
