Load an X-PAD document

|

• To load another job as external reference click External references.

• Click Add.

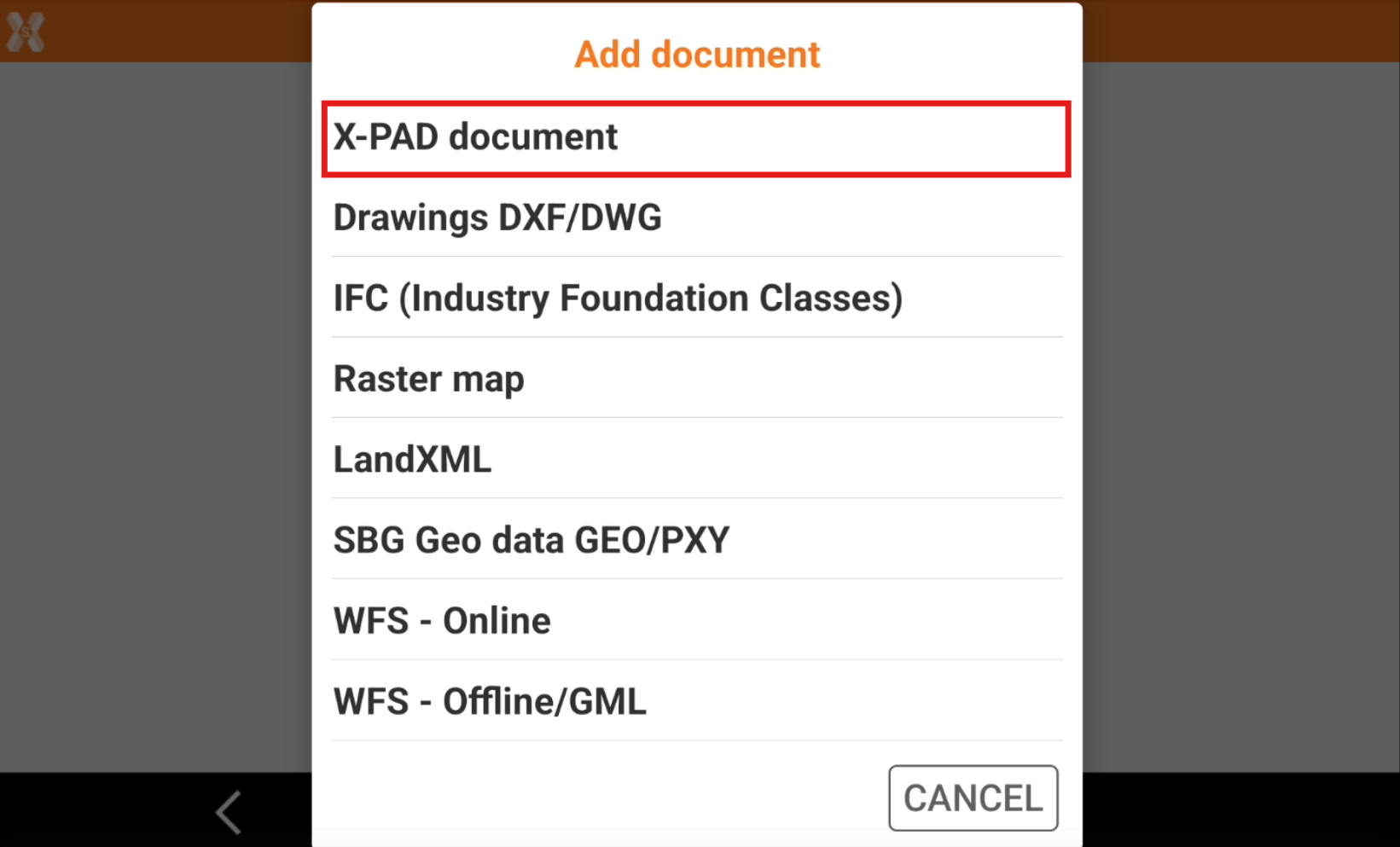

• Select X-PAD document.

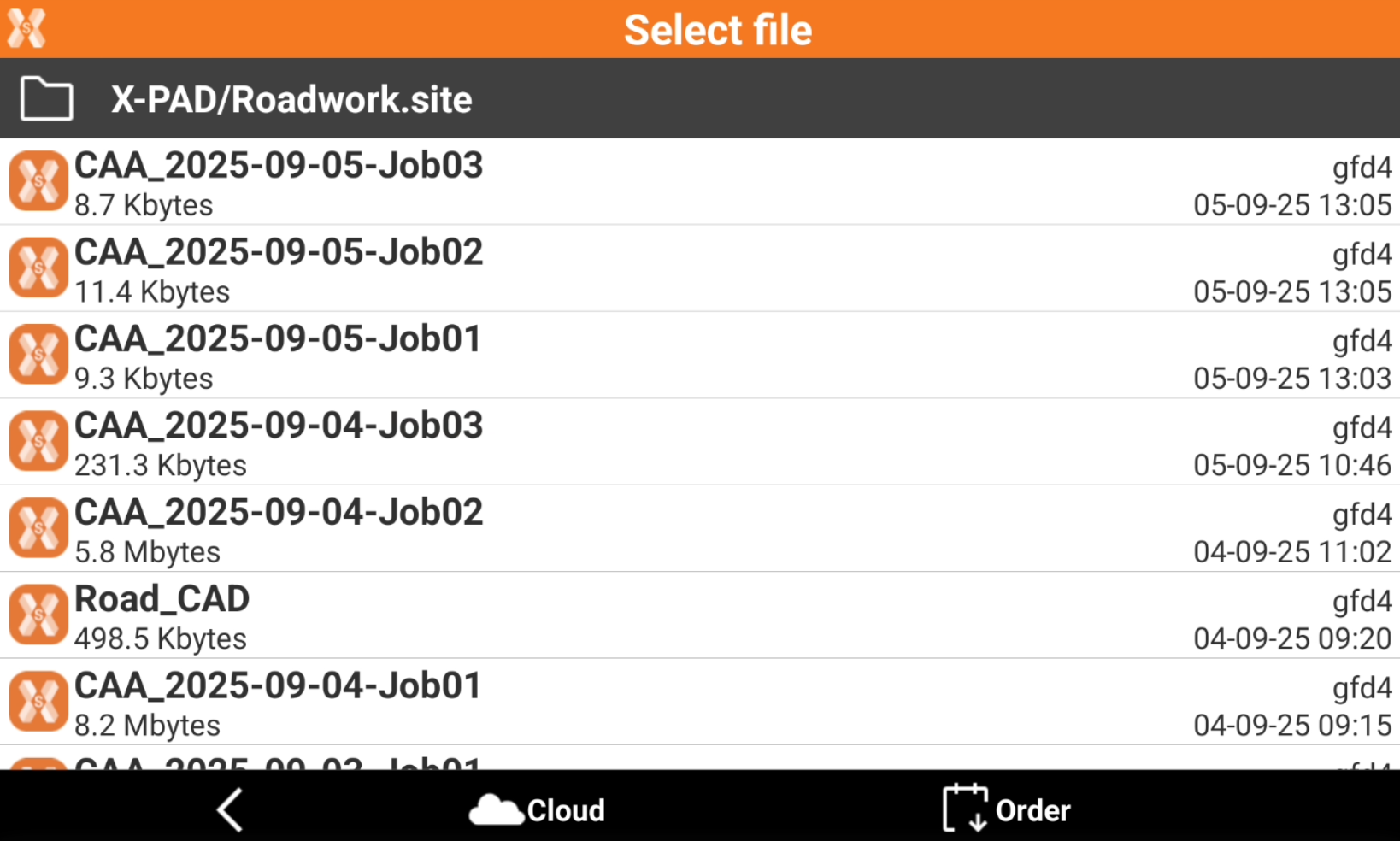

• Select the reference job from the internal memory or from the cloud.

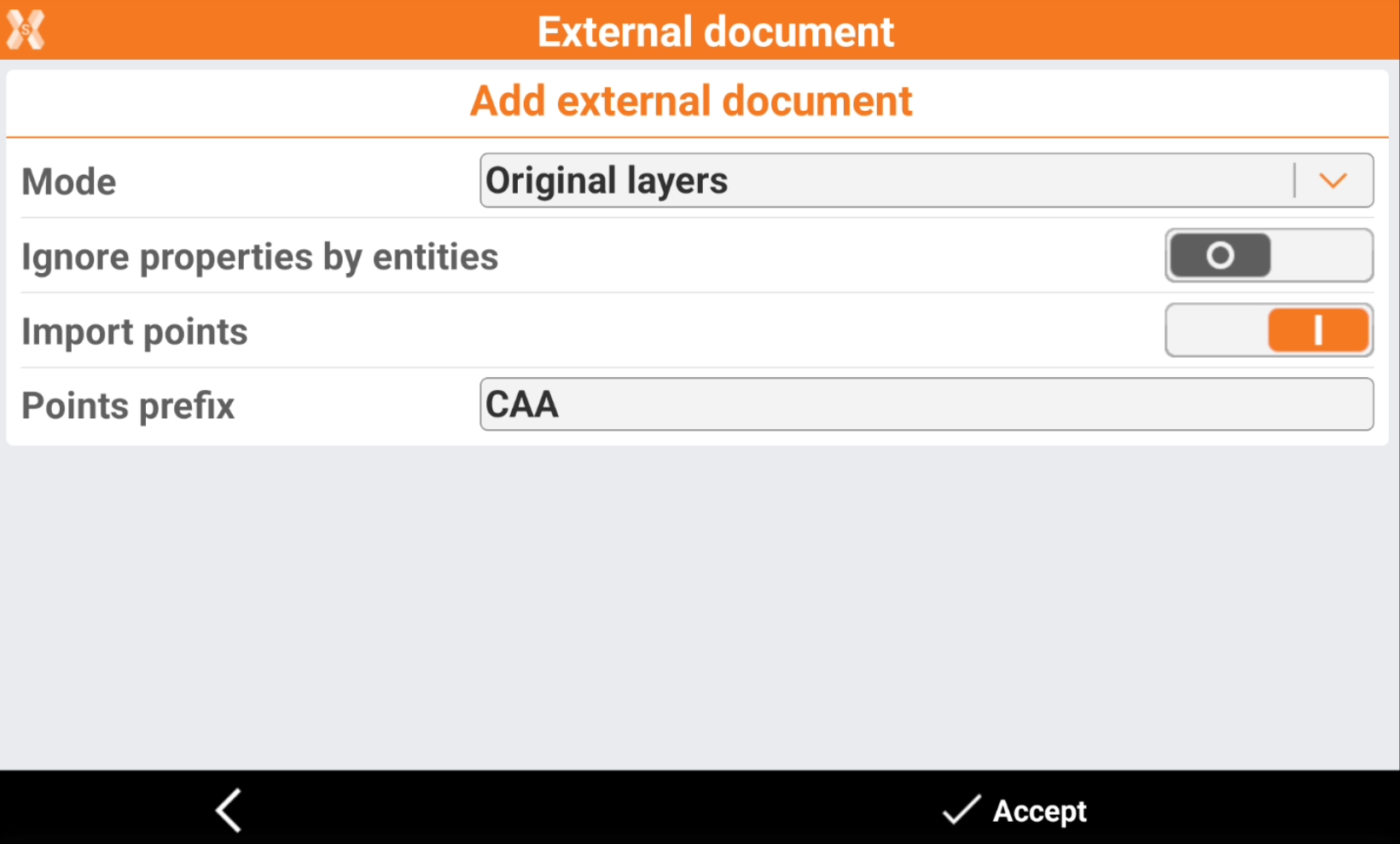

• Enter the options.



  • Mode:

    • Original layers: the data is loaded mantaining the original layer.

    • All in one layer: the data is loaded in one layer.

  • Ignore properties by entities: the data is loaded ignoring the specific properties of the entity.

  • Import points: the topographic points in the job are loaded.

  • Points prefix: assign a specific prefix to loaded points.

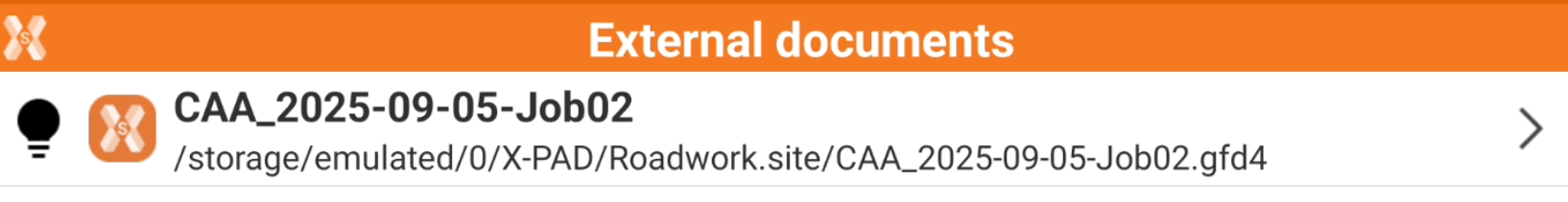

• The reference job is loaded.
