Select a file

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • When a file has to be selected, for example when it is imported or selected as external document, the following page is opened.

  • It is possible to select a file from internal memory, USB pen drive or a cloud storage.


Select a file from internal memory or USB

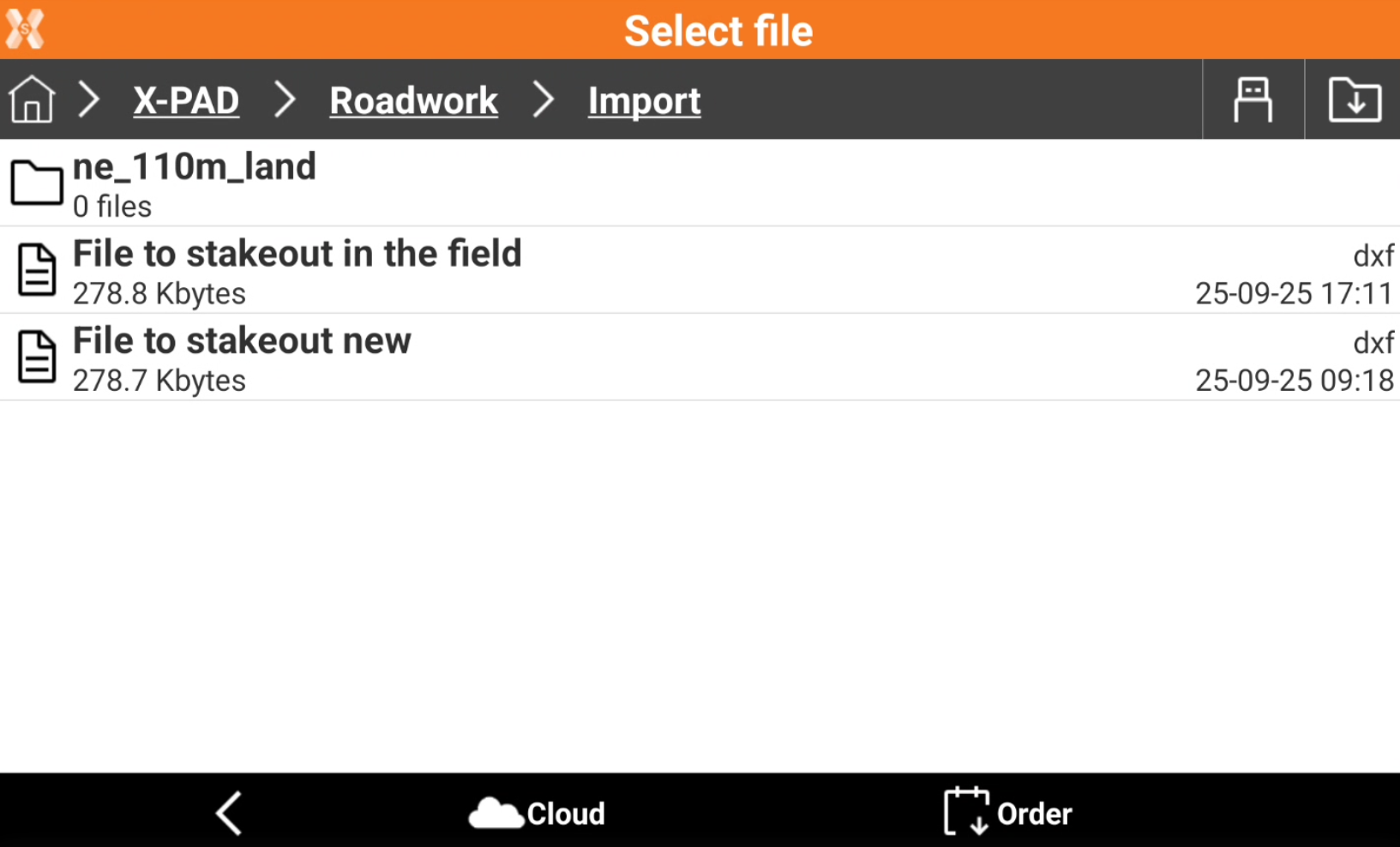

  • The page shows the selected folder in the internal memory in the top bar.

  • The current path is displayed as separated links that allow to quickly jump to the main folder or to any other folder.


  • The page shows the folders and files in the selected folder.

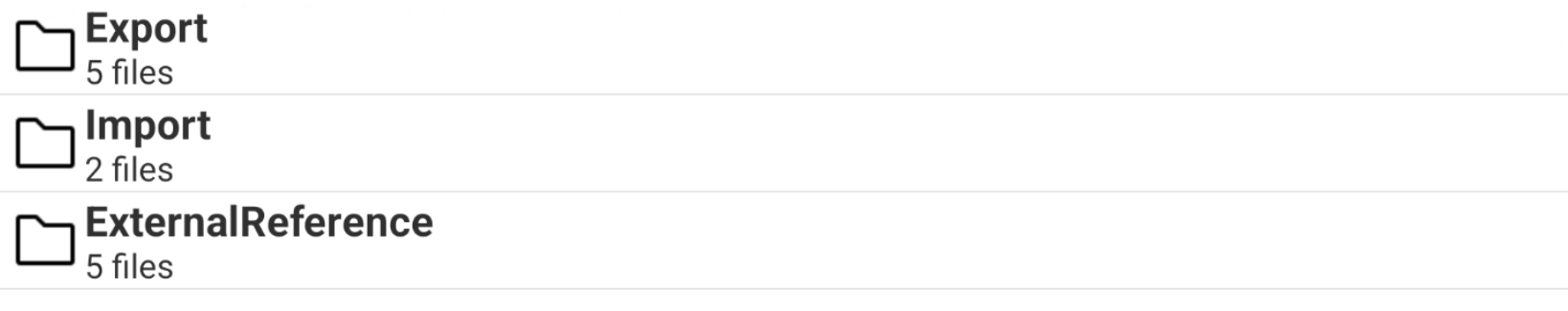

The software displays only the files with the correct extension. For example when importing a DXF/DWG file, only files with DXF/DWG extension are visualized. The software shows the number of files with correct extension in the sub folders.

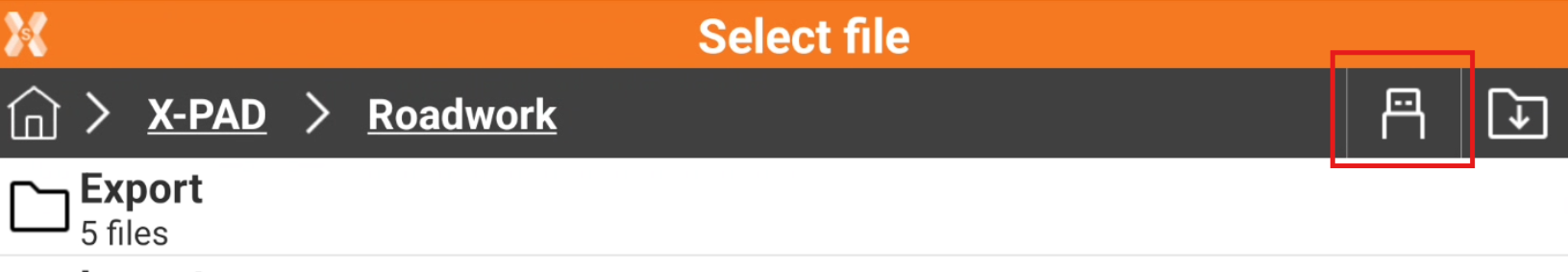

  • Click USB icon to open the USB memory, in case a USB pen drive is connected to the controller.

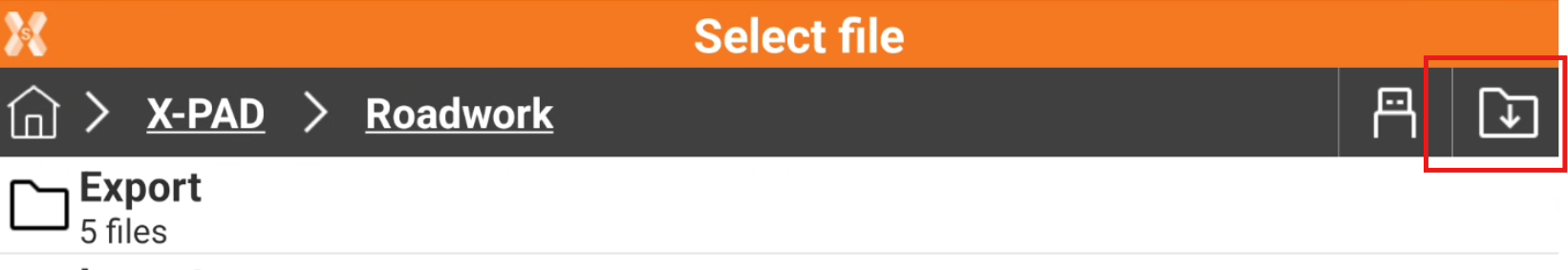

  • Click Download icon to open the internal memory Download folder.

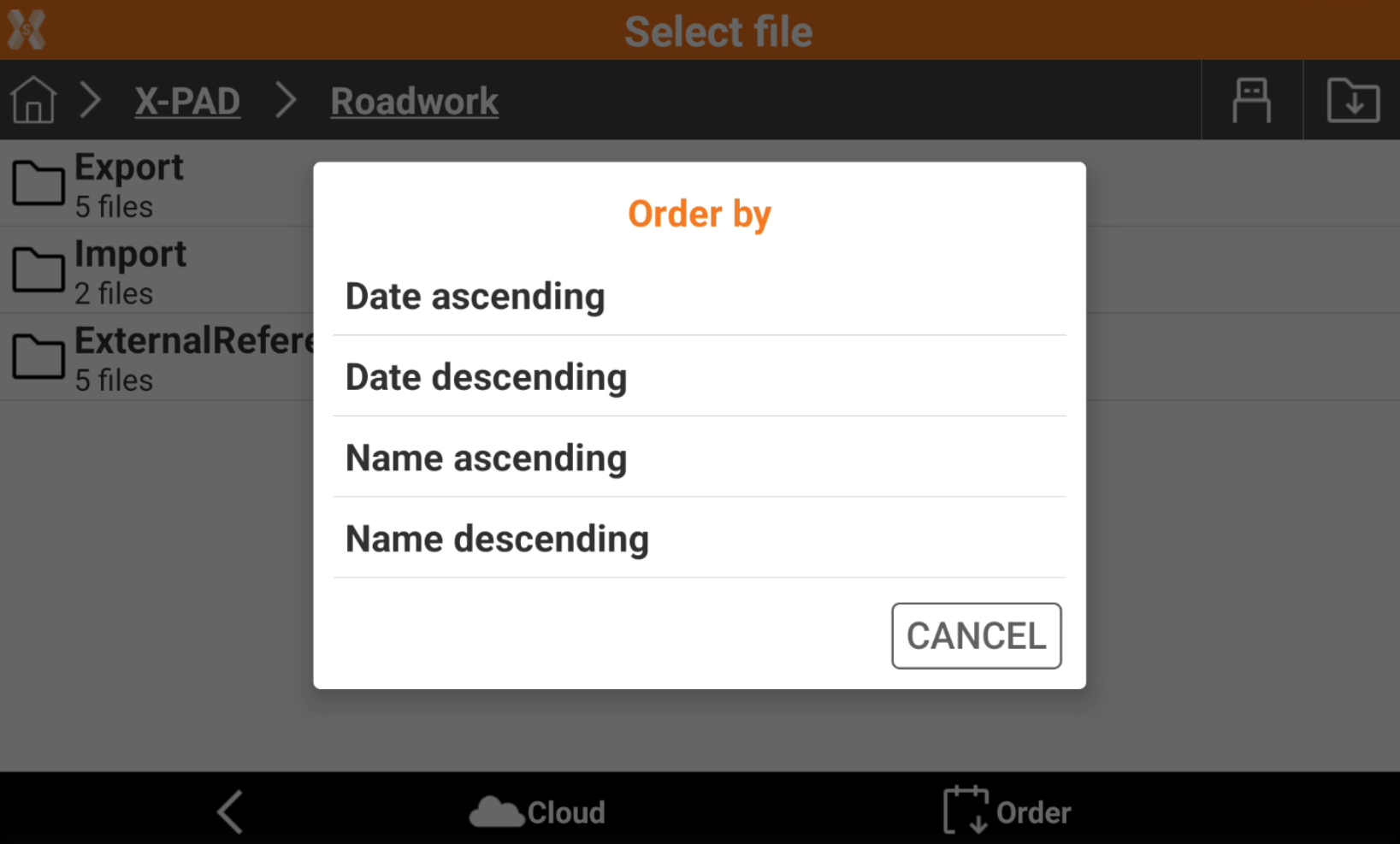

  • Click Order icon to change the visualization order of the files.


  • Click on a file to select it.

Select a file from cloud storage

  • To select a file from a cloud storage click Cloud.

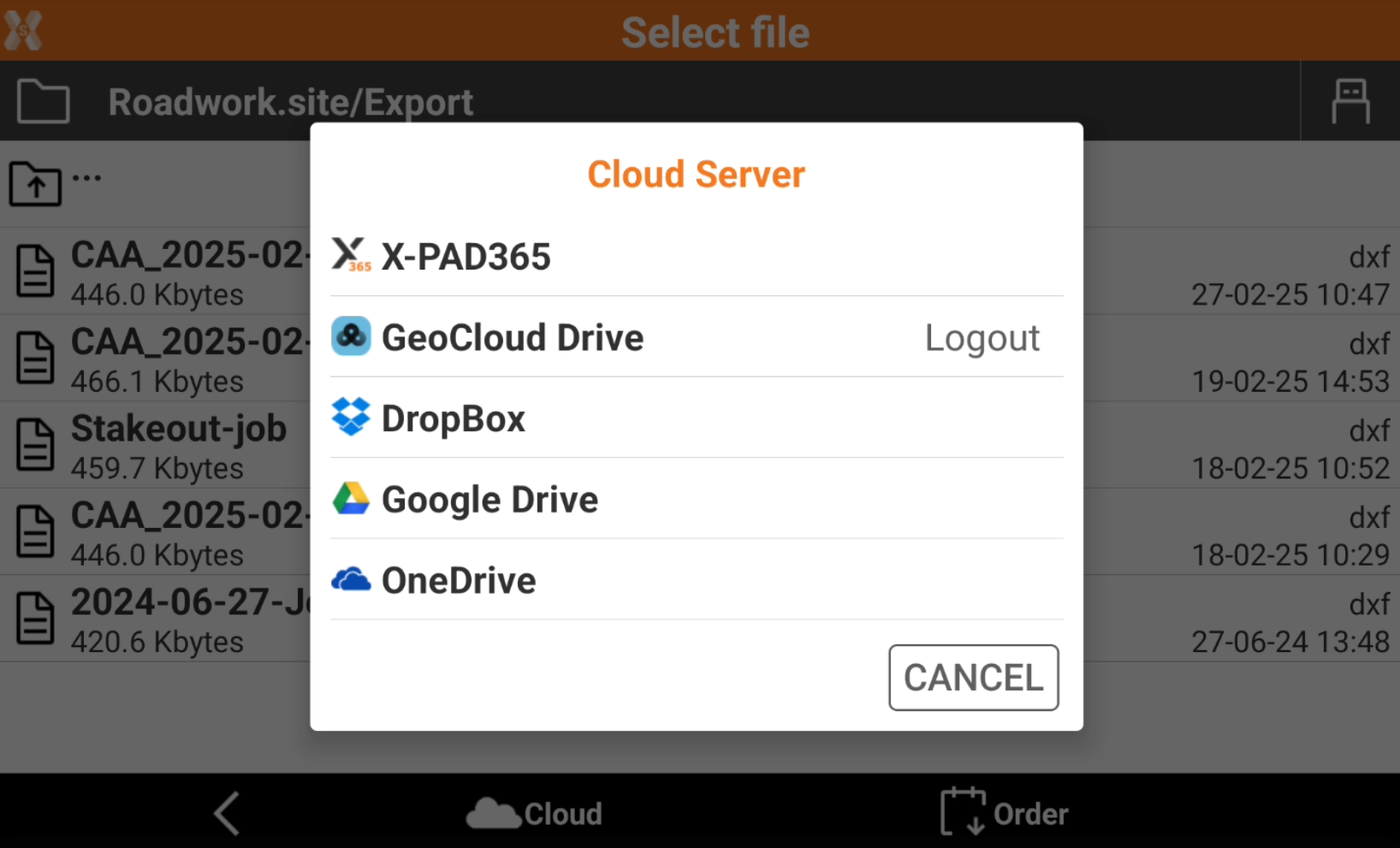

  • Select the Cloud server.


Some cloud server may request to authenticate.

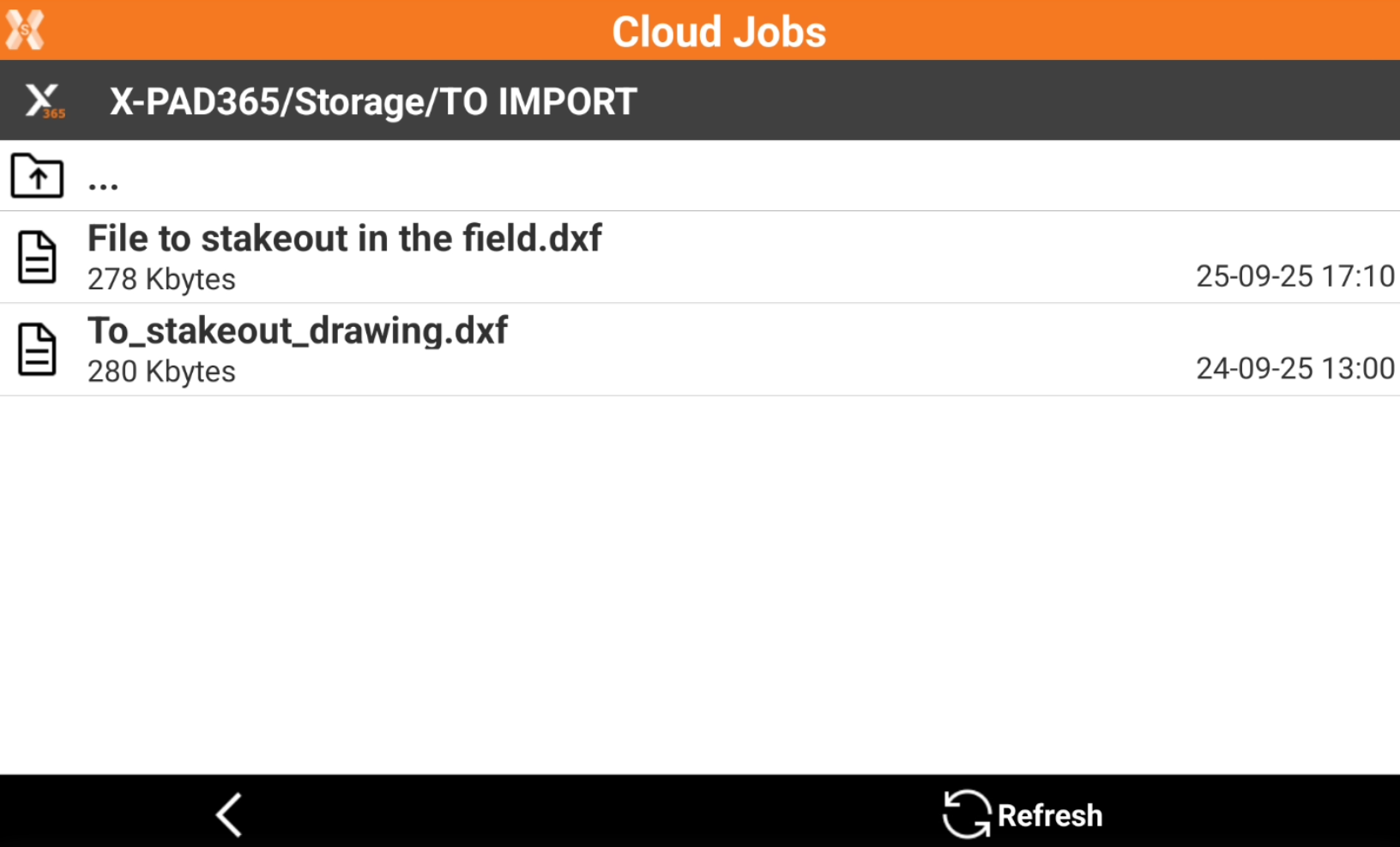

  • Select the path in the cloud storage to visualize the files to select.


  • The top bar shows the selected folder.

  • Click Refresh to reload the files.

  • Click on a file to select it.
