Managing point to point profiles

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • Allows to set the IP address and the port number for the connection to receive corrections.

  • Point to point connection allows to receive RTK corrections directly from an IP address and port, not using the NTRIP protocol.

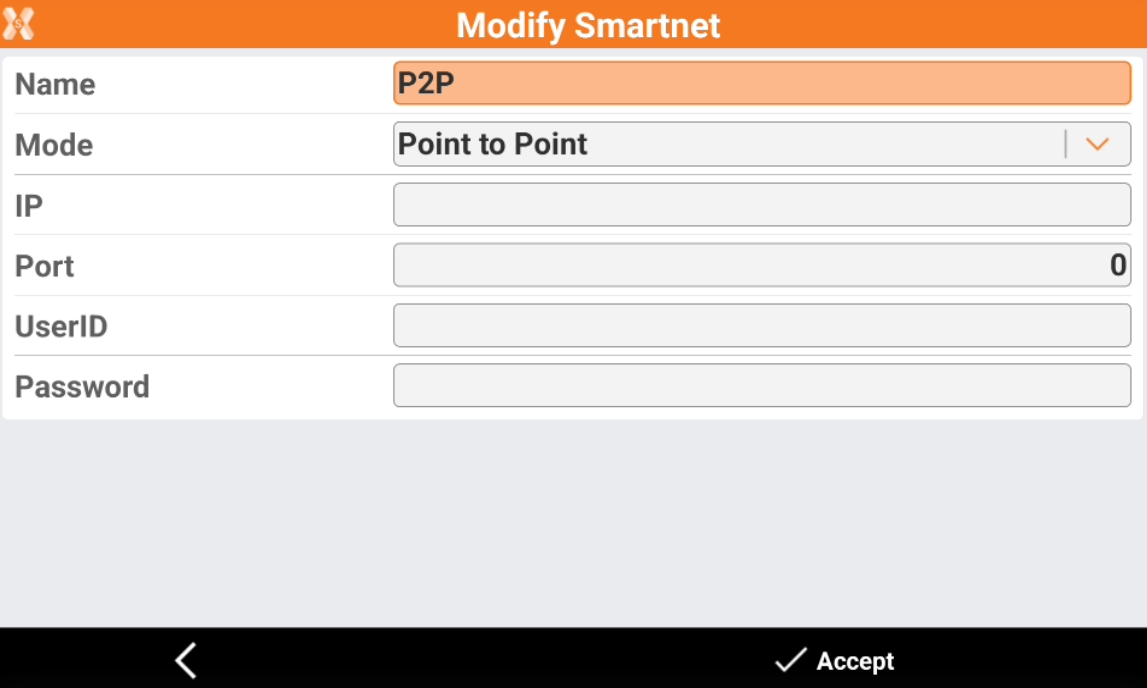

  • The parameters are:


    • Name: description of the profile.

    • Mode: select PPP (Point to Point).

    • IP: IP address to use:

    • Port: number of the port to use:

    • UserID: identification of the user registered to the service.

    • Password: password assigned to the registered user by the service.

  • Click Accept to save the configuration.
