Point commands

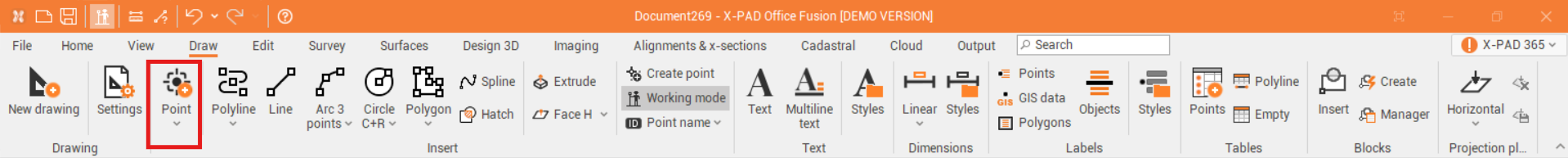

Use the command Point to draw topographic points, according to different methods.

Point: adds new topographic points.

Coordinates: adds new topographic points entering the coordinates.

Azimuth & Distance: adds new topographic points by azimuth and distance from a reference point.

Distance & Offset: adds new topographic points by distance and offset from a reference point.

Intersection: adds new topographic points by intersection of 4 points or drawing objects.

Points on object’s intersections: adds new topographic points on intersections of selected drawing objects.

Projection to entity: adds new topographic points by projecting selected point on a selected drawing entity.

Add to entities: adds new topographic points to main positions of selected entities.

Delete from entities: deletes new topographic points to main positions of selected entities.

Divide: divides a reference object in parts and adds topographic points.

Measure: adds topographic points along a reference object.

Grid of points: generates a regular grid of points and lines based on defined parameters.

From block’s reference: converts selected block’s reference to topographic points.

From mesh vertices: creates new topographic points on selected mesh vertices.
