Coordinates

  • Use the command Coordinates to create a point to the current survey subproject entering the point coordinates.


  • Click Draw.

  • Click click below Point to open drop down menu.

  • Click Coordinates.

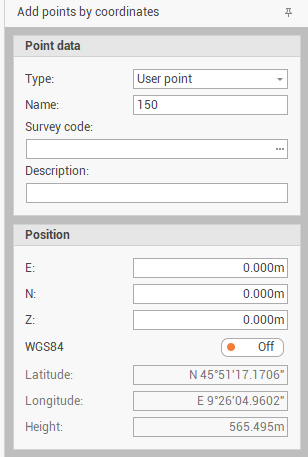

  • This function opens a table on the right side of the window.


  • Enter the requested information to create the topographic point.

    • Type: selects if point is a User point or a Reference point.

    • Name: the name ID of the point.

    • Survey code: selects the survey code to assign to the point from the list of Survey code assigned to the project.

    • Description: the point description.

    • Position: the position in E,N,Z.

    • WGS84: turns on WGS84 option to activate the WGS84 coordinate for the point. It is possible to edit the WGS84 coordinates and E,N,Z are recalculated. A cartographic system assigned to the project is required.

  • Or click on the graphic view to create the point graphically.
