Use the command Measure to add topographic points at fixed distance along a reference object.
-
Reference objects can be a lines, polylines, arcs and circles.
-
Click Draw.
-
Click click below Point to open drop down menu.
-
Click Measure.
-

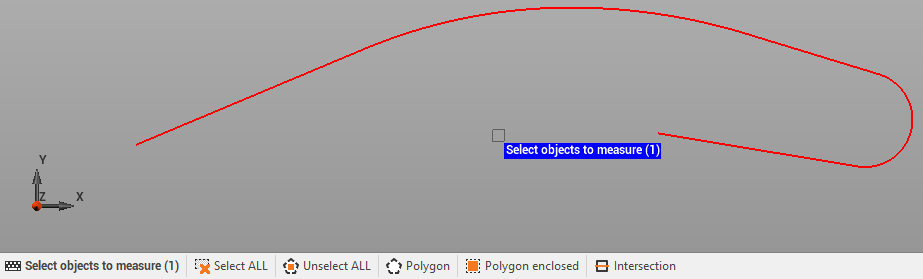

Select objects to divide. Can be directly selected in the graphic view clicking on them, or with a selection area. Or can be selected using the commands int he bottom part of graphic area.
-
Enter the distance. Distance can be entered:
-
Measure distance: measures the distance to use on the graphic area.
-
Enter value: enters the distance manually.
-
Only on vertices: the topographic points are created only on the vertices of selected objects.
-
-

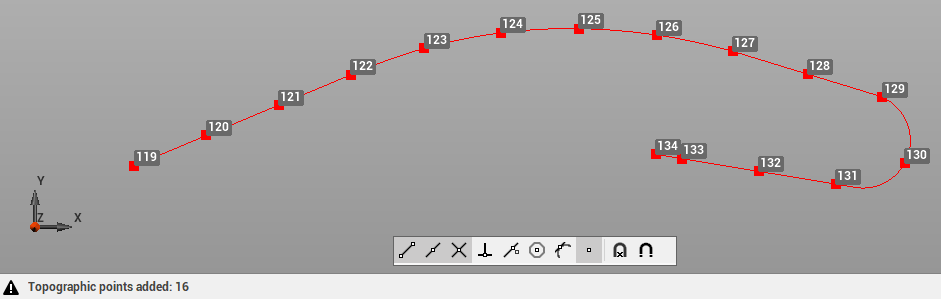

Confirm to create the topographic points.
