Accessing and closing the CAD

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

Accessing the CAD

  • It is possible to access to CAD from the software main screen or from some applications.

Access the CAD from main screen

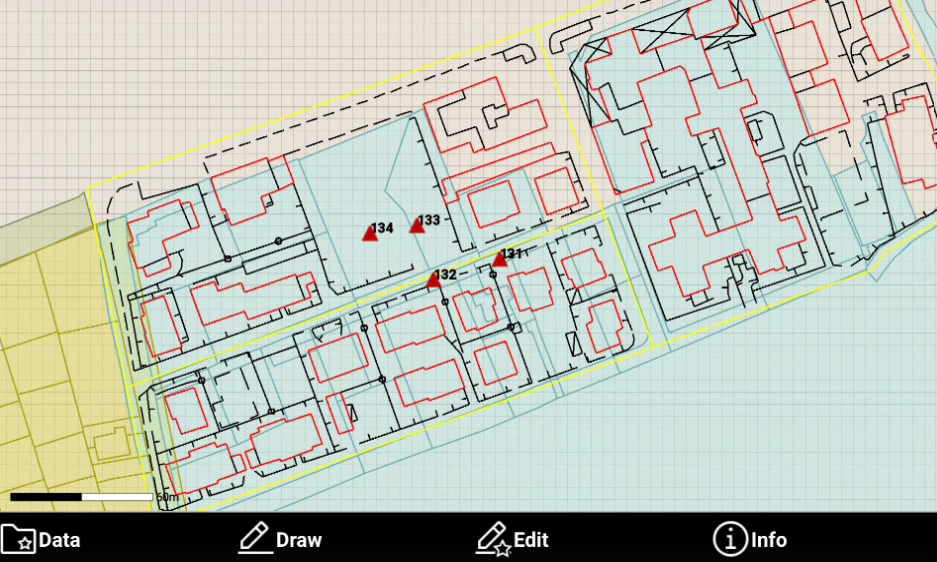

  • In the software main screen click CAD button in the bottom toolbar.


  • The window has a tool bar in the lower part from which you access to all the CAD functions.


Access the CAD from the applications

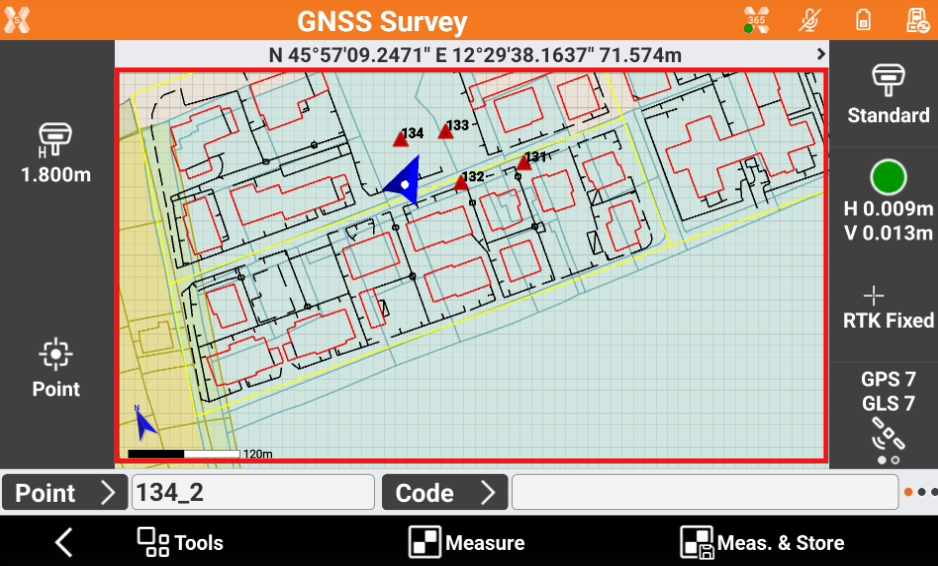

  • While using survey and stakeout applications, double tap on CAD screen to open the CAD.


  • The CAD view is centered on the current position.


Closing the CAD

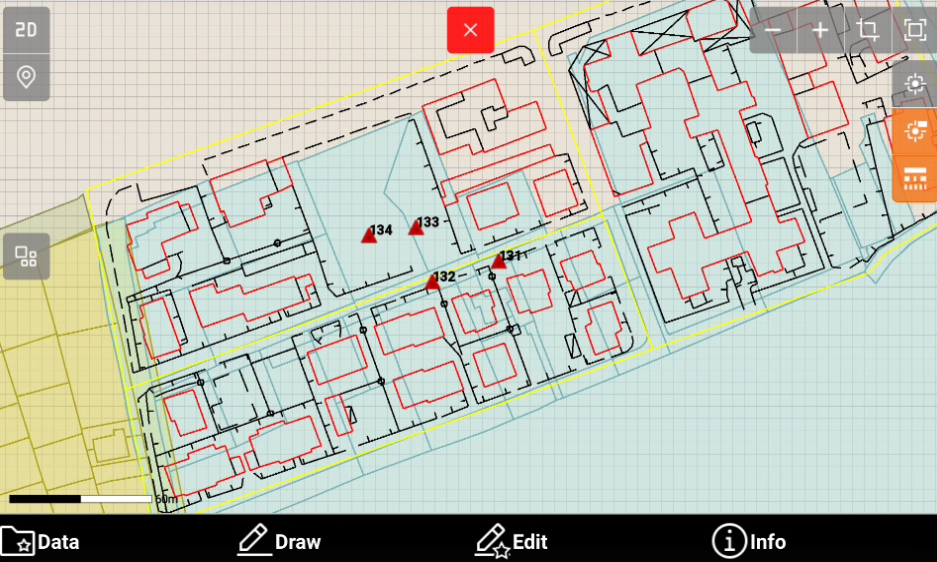

  • Click in the area for graphic visualization. An icon for closing the CAD window appears.


  • Click image-20250508-090919.png to close the CAD and return to previous window.
