Setting the working area

| |

• When the drawing extension is too large to display all items correctly, this symbol happears.

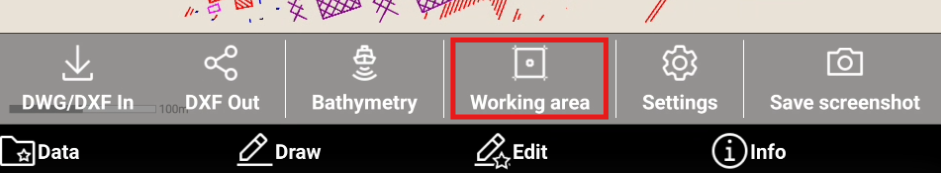

• By clicking on the icon, the area to work on can be defined.

• When a working area is stored, the software uses it as default view for the CAD and Job window. If a working area is defined, the command Zoom Max. shows the defined working area. Working areas can be defined in the two ways:

  • Setting a working area directly.

  • Defining a working area.

Setting the working area directly

• Click icon.

• Perform the view adjustment.



• Click OK.

Defining a working area

• A working area can also be defined in case we want to force the zoom all to a defined area in CAD.

• Click Data.

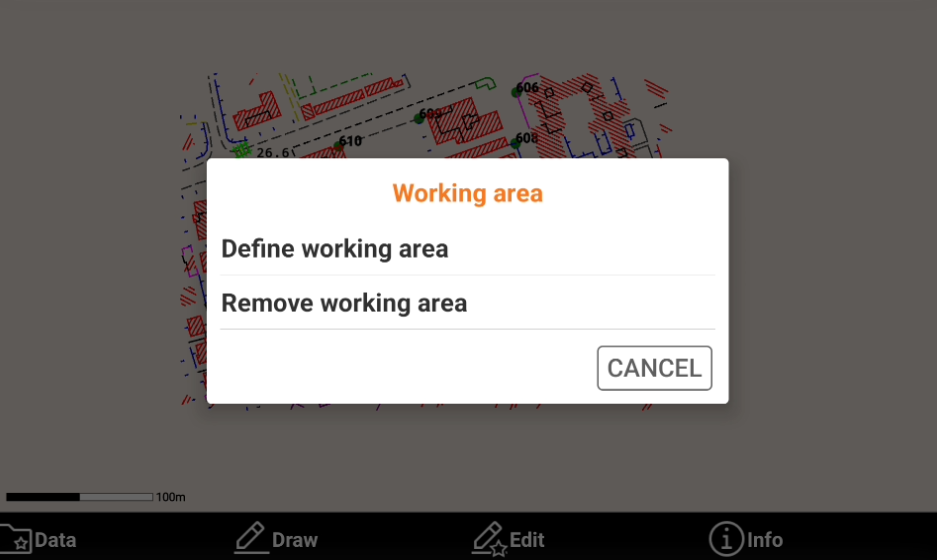

• Select Working area.



• Click Define working area.

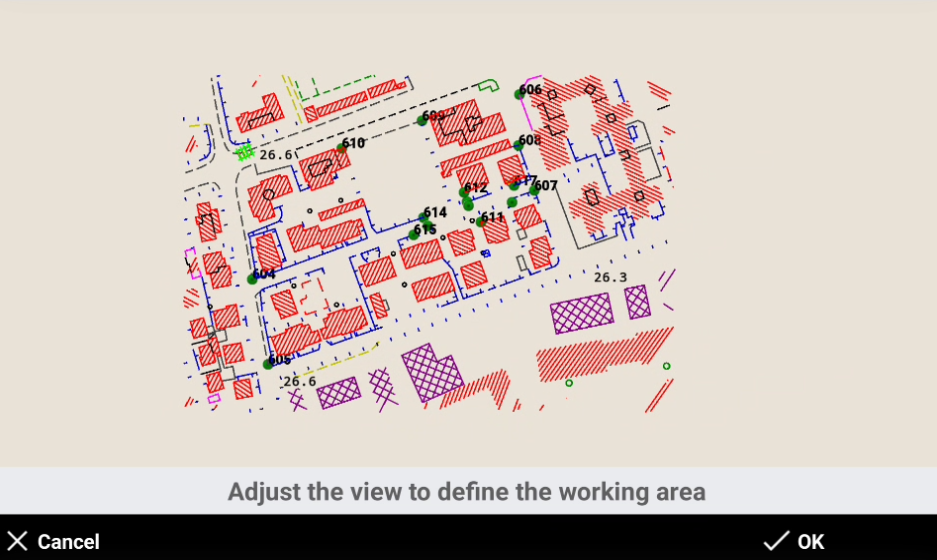

• Adjust the view and click OK.



Remove a working area

• It is possible to delete a defined working area.

• Click Data.



• Select Working area.



• Click Remove working area.
