Edit a measurement

| |

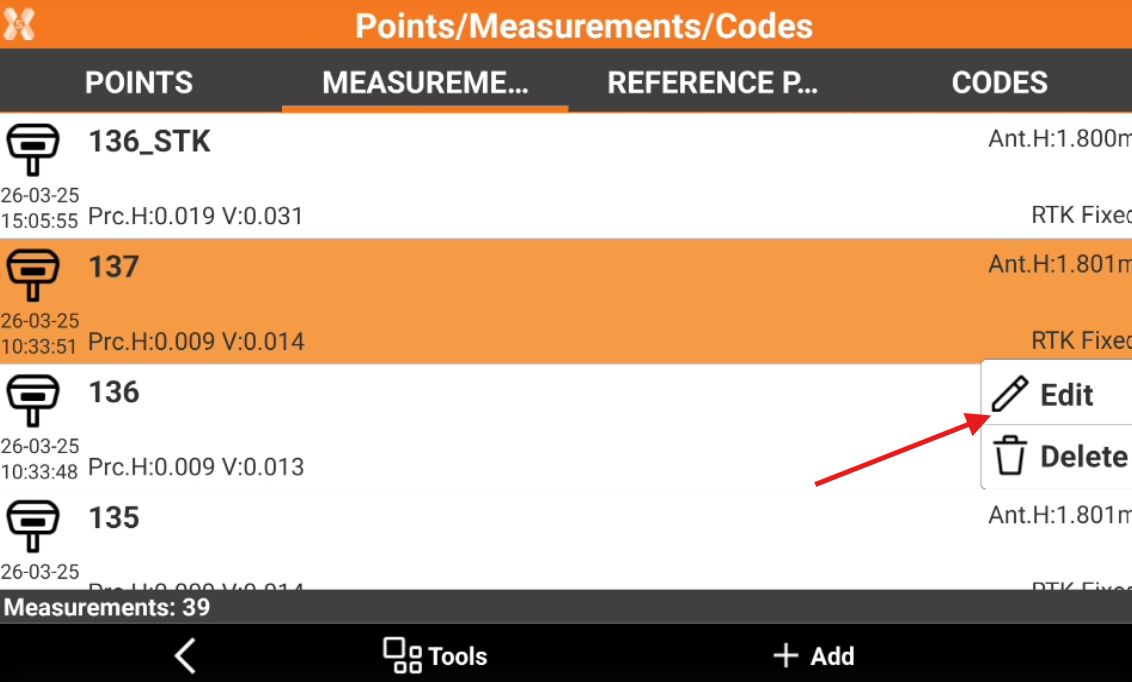

• Stored measurements can be visualized and edited from the Measurements list.

• Open Job tab.

• Select Points/Measurements/Codes.

• Open the Measurements tab. The page lists the measurements.

• Tap on a point and select Edit.



• The data of the point is organised in pages.

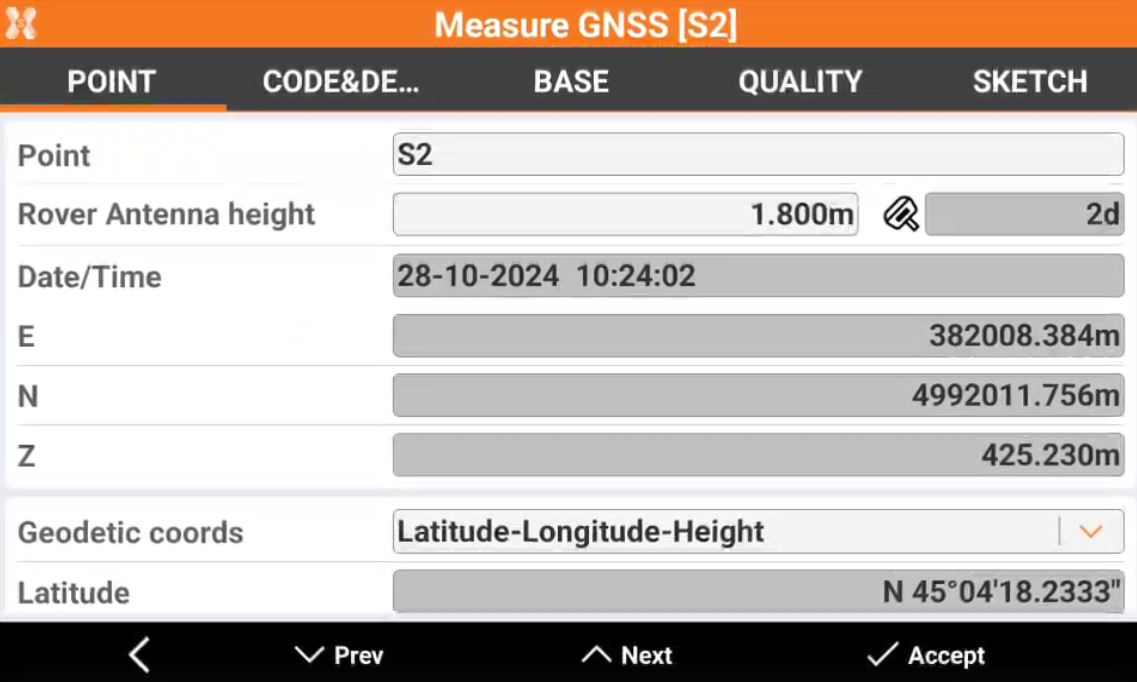

Point page

• Point page include coordinate information of measured point.



  • Point: name of the point.

  • Rover antenna height: GNSS antenna elevation. When the antenna elevation is changed, the corresponding point coordinates are recalculated.

  • Tilt: in case of use of GNSS receivers with IMU, this field displays the GNSS pole tilt.

  • Target height: TPS target elevation. When the antenna elevation is changed, the corresponding point coordinates are recalculated.

  • Date/Time: date and time when the measurement has been performed.

  • E, N, Z: plane coordinates of the point.

  • Depth: in case of measure with a vertical offset, the depth shows the vertical offset.

  • Geodetic coords: allows to choose the format for the WGS84 coordinate.

    • Latitude, longitude and height: the coordinate is visualized as latitude, longitude and height.

    • ECEF XYZ: the coordinate is visualized as earth centered coordinate.

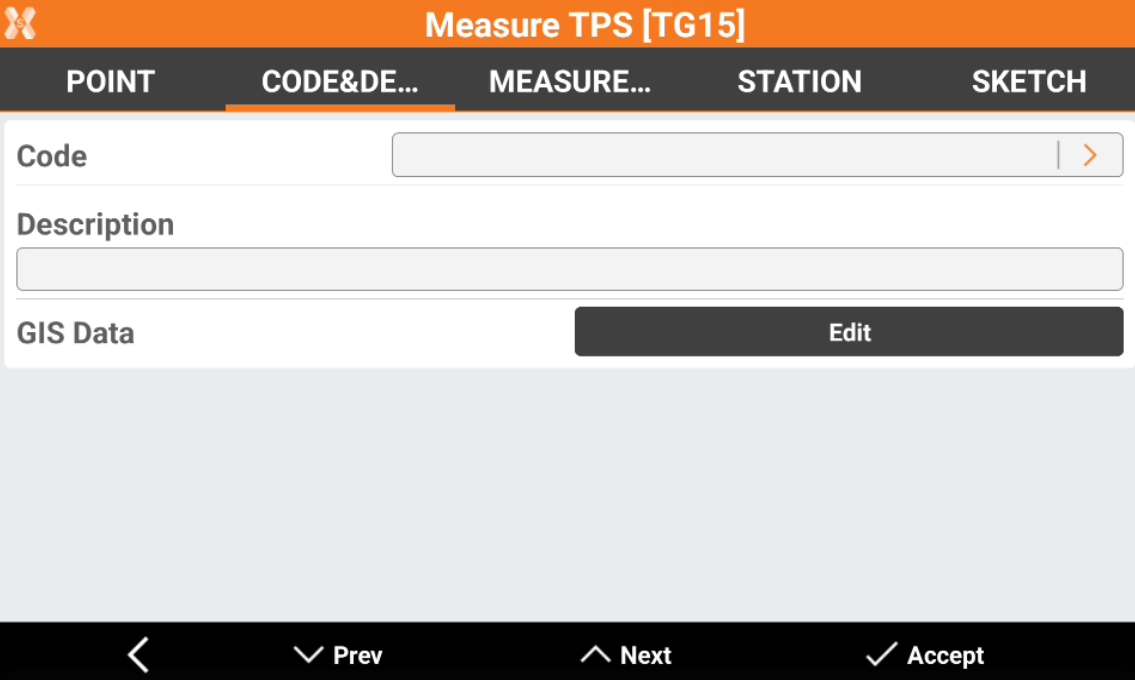

Code page

• The Code & Description page displays measurement properties such as code, description, and GIS features.



  • Code: survey code of the point. Click > to open the codes library and select a different code from the list.

  • Description: extended description of the point.

  • Date: date and time when the point was stored.

  • GIS Data: if GIS features have been associated to the point click Edit to enter or modify the corresponding GIS attributes.

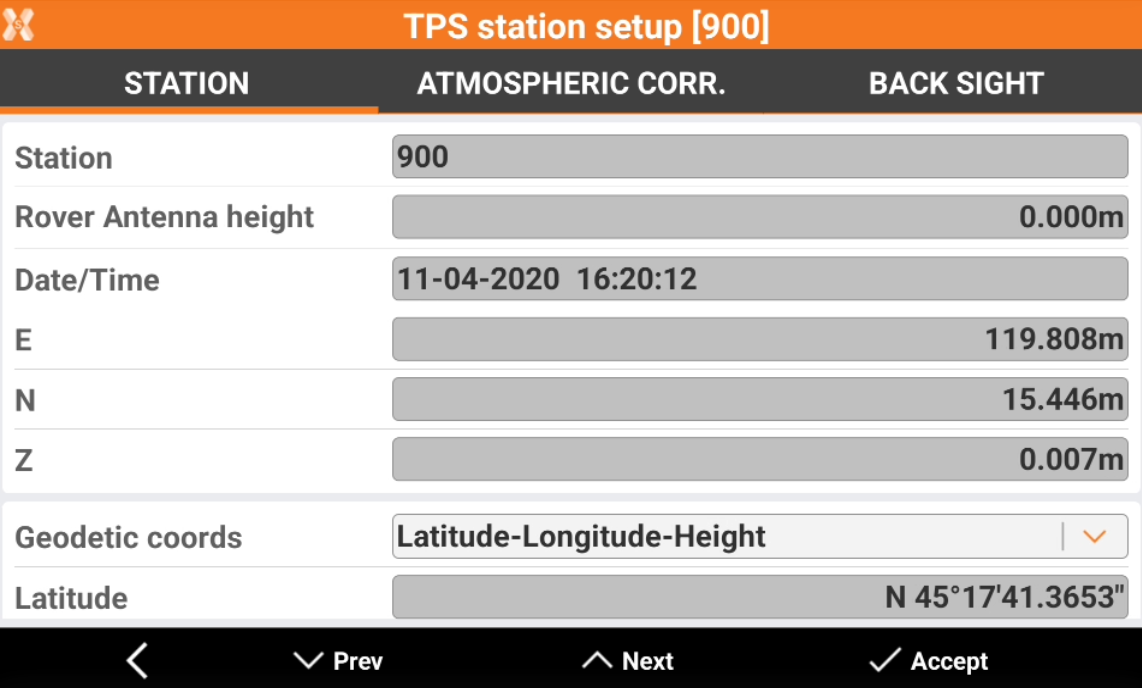

Station (TPS only)

• Station page is available when working with a total station.

• The page shows information on the station setup.



• Point: name of the station.

• Station height: station elevation.

• Date/Time: date and time when the measurement has been performed.

• E, N, Z: plane coordinates of the station.

• Geodetic coords: allows to choose the format for the WGS84 coordinate.

  • Latitude, longitude and height: the coordinate is visualized as latitude, longitude and height.

  • ECEF XYZ: the coordinate is visualized as earth centered coordinate.

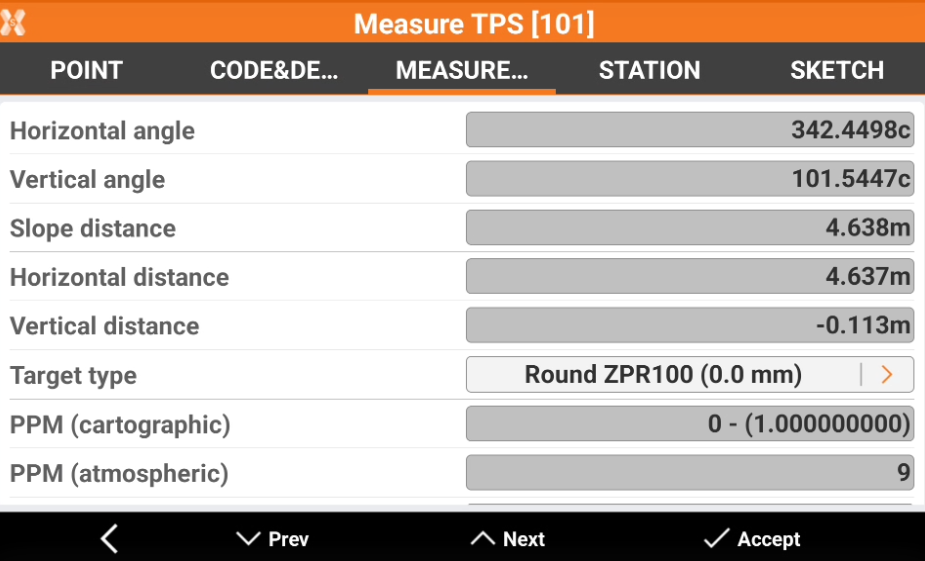

Measurement page (TPS only)

• Measurement page shows the properties of the total station measure.



  • Horizontal angle: the measured horizontal angle.

  • Vertical angle: the measured vertical angle.

  • Slope distance: the measured slope distance.

  • Horizontal distance: the measured horizontal distance.

  • Vertical distance: the measured vertical distance.

  • Target type: the type of target used in the measure. Click on the arrow to change the target type used: this operation recalculates the point coordinate.

  • PPM (cartographic): the combined scale factor for ground to grid reduction used for the measure.

  • PPM (atmospheric): the atmospheric scale factor used for the measure.

  • Prism aim mode: the mode used to aim the target.

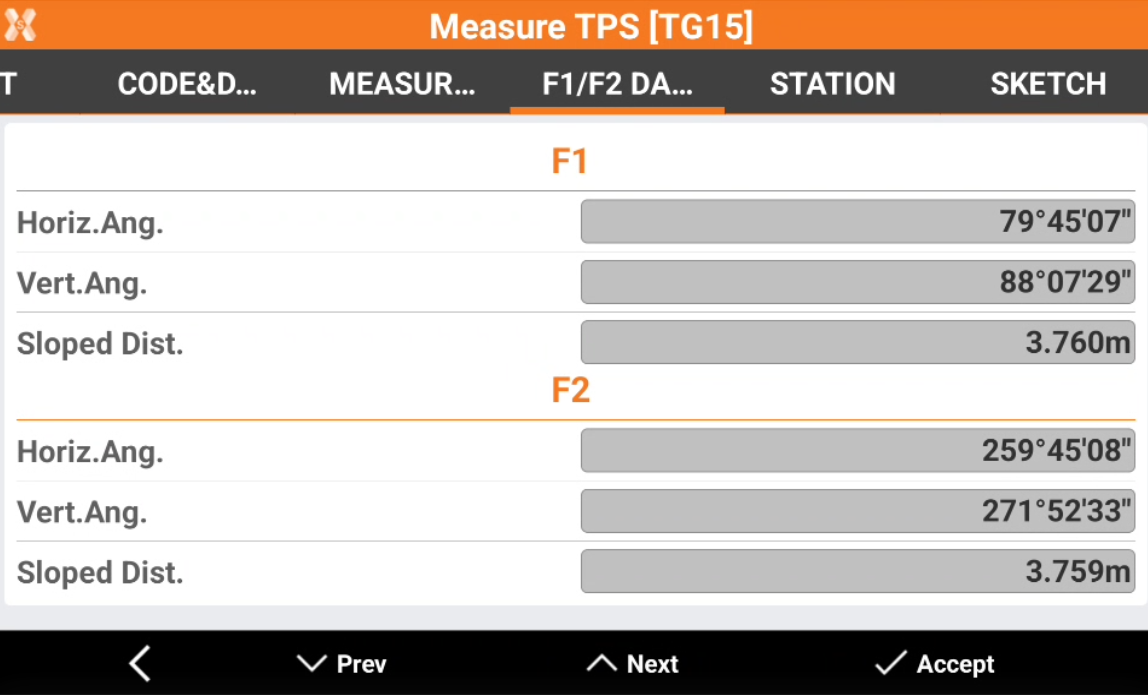

F1/F2 Data (TPS only)

• The F1/F2 Data page is available in case of TPS measurements in face I and face II.

• The page shows the measured data performed in face I and face II.



  • Horiz.Ang.: the horizontal angle measured in face I and in face II.

  • Vert.Ang.: the vertical angle measured in face I and in face II.

  • Sloped Dist.: the sloped distance measured in face I and in face II.

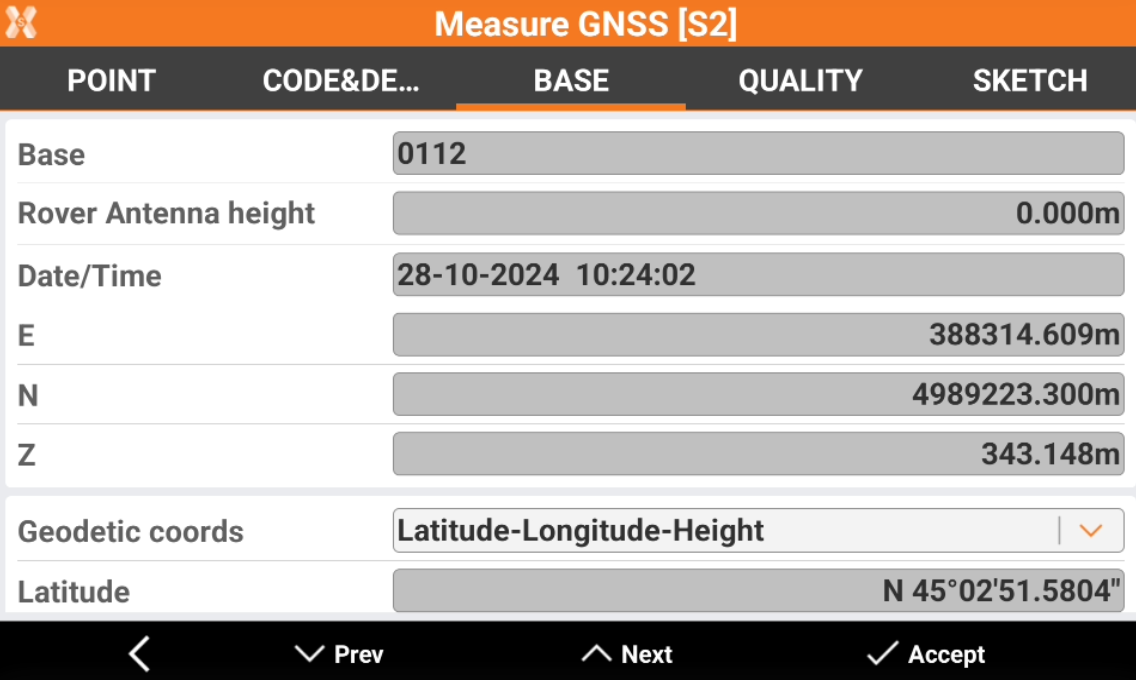

Base page (GNSS only)

• Base page shows the properties of the GNSS base used for the selected measure.

• The page is available when working with a GNSS receiver.



  • Base: the ID of the base.

  • Base Antenna height: the base height from ground point to ARP.

  • Date/Time: date and time when the measurement has been performed.

  • E, N, Z: plane coordinates of the coordinate of the base.

  • Geodetic coords: allows to choose the format for the WGS84 coordinates of the base.

    • Latitude, longitude and height: the coordinate is visualized as latitude, longitude and height.

    • ECEF XYZ: the coordinate is visualized as earth centered coordinate.

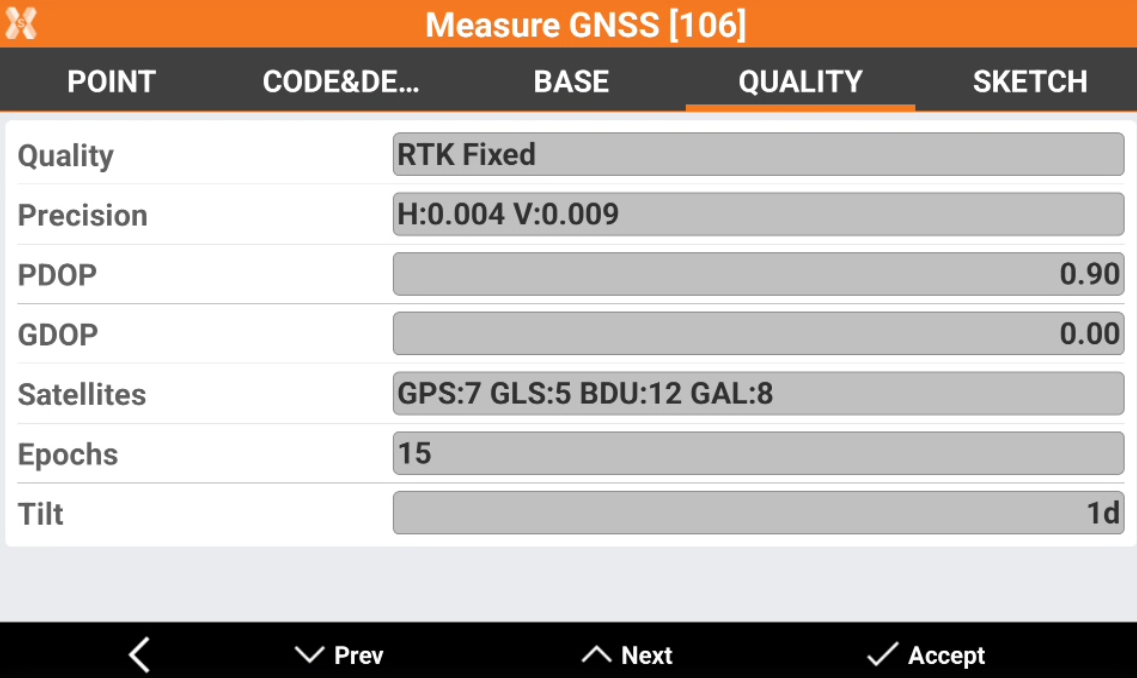

Quality page (GNSS only)

• Quality page shows information about the quality of the GNSS measurement.



  • Quality: the quality of the GNSS positioning (RTK fixed, Mobile, Autonomous)

  • Precision: the estimated positioning error in planimetry and elevation.

  • PDOP: the calculated PDOP (positional dilution of precision).

  • GDOP: the calculated GDOP (geometric dilution of precision)

  • Satellites: the used satellites. The number of satellites is subdivided by GNSS constellation (GPS, GLONASS, Beidou, Galileo).

  • Epochs: the number of epochs.

  • Tilt: in case of measure with IMU receiver, this field shows the pole tilt in degrees.

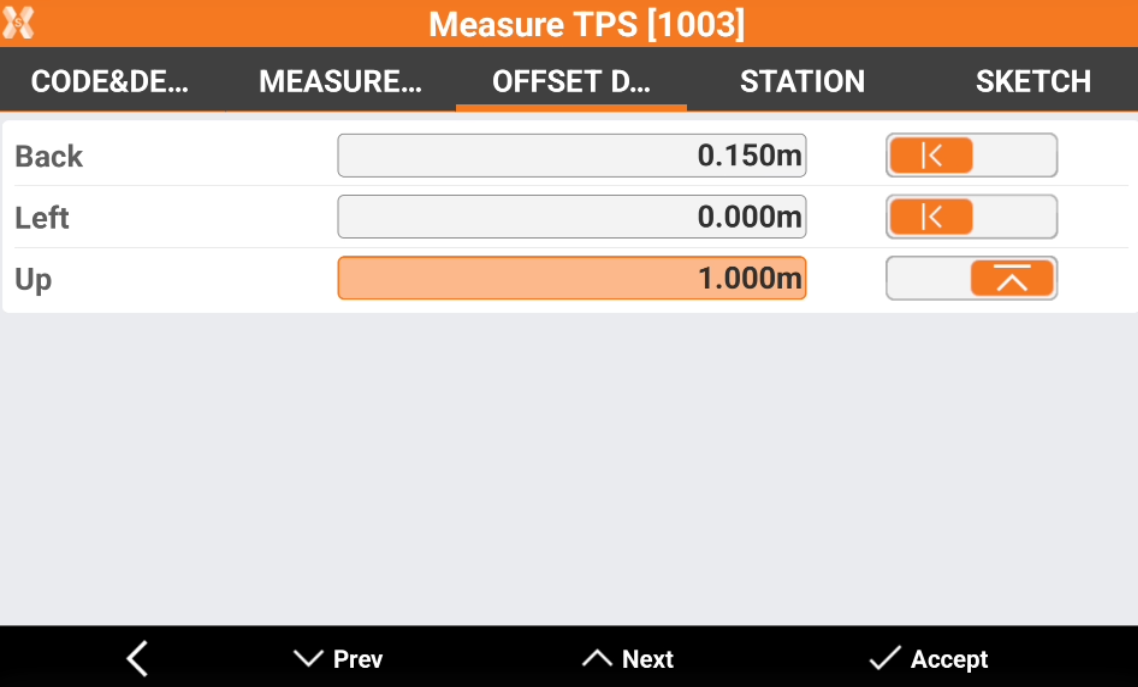

Offset distance (TPS only)

• If a point has been measured with distance offset measure, the page Offset distance is available and shows the properties of the offset used in the measure.



  • Back/forward: the offset back or forward. Tap on on the arrow to change the offset direction.

  • Left/right: the offset left or right. Tap on on the arrow to change the offset direction.

  • Up/down: the offset up or down. Tap on on the arrow to change the offset direction.

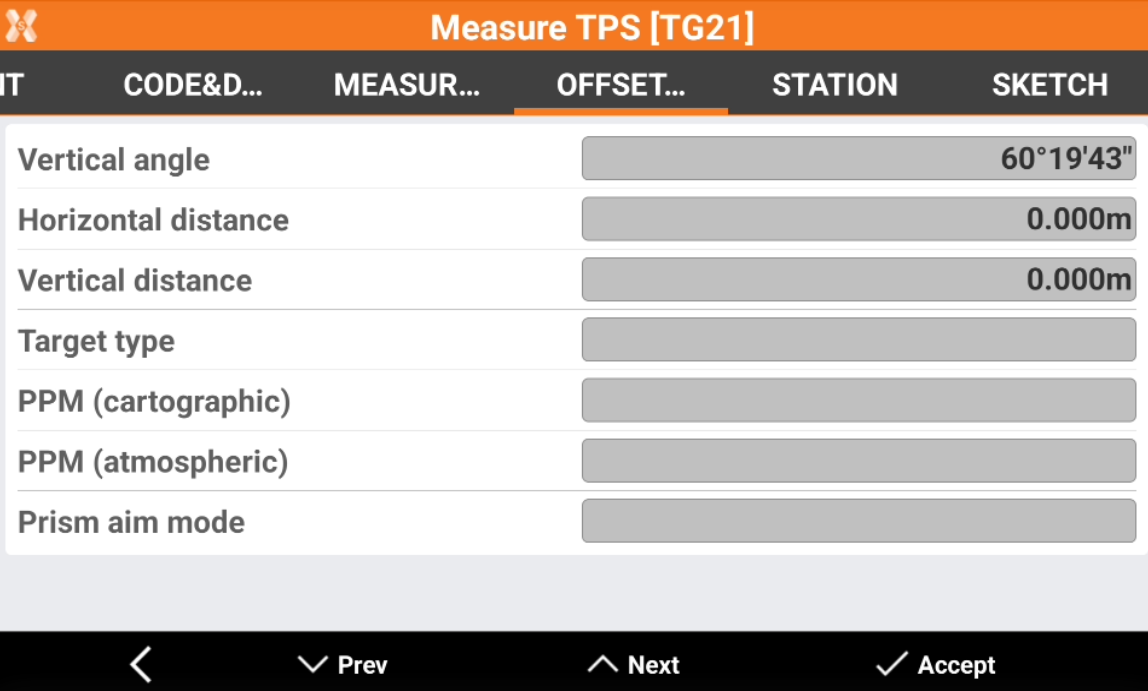

Offset (TPS only)

• The Offset page is available in case the measurement is a total station measurement performed with an angular offset.



  • Vertical angle: in case of measurement with vertical angle offset, this field shows the vertical angle measured.

  • Horizontal angle: in case of measurement with horizontal angle offset, this field shows the vertical angle measured.

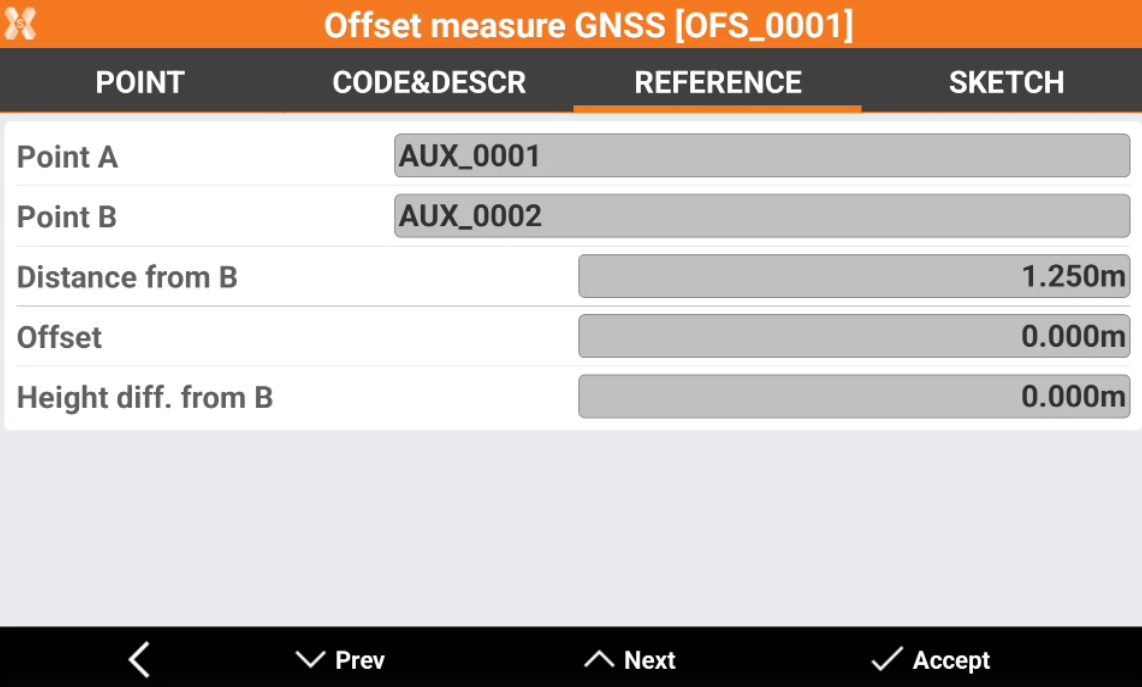

Reference (GPS only)

• If a point has been measured with offset measurements (for example distance and alignment, or distance-distance), the Reference page shows the information regarding the used reference points.



  • Point A/B: the ID of the auxiliary points used.

  • Distance from: depending on the method used, the distance from the used auxiliary point.

  • Offset: depending on the method used, the offset from the used auxiliary point.

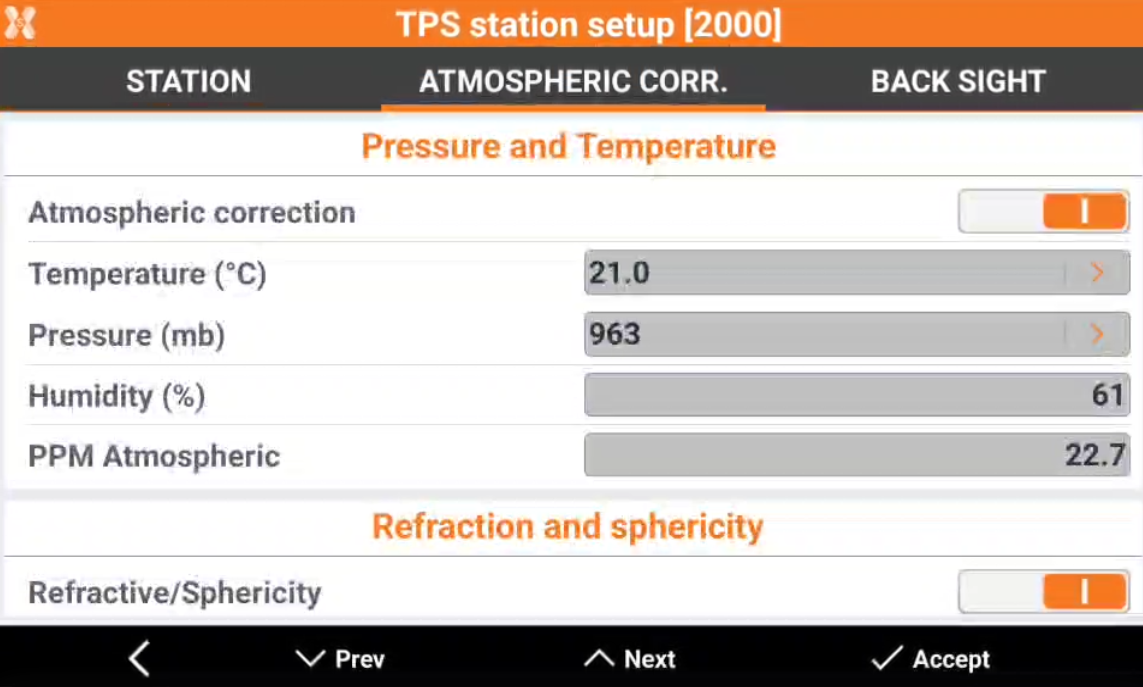

Atmospheric corrections (TPS only)

• The Atmospheric corrections page is available for TPS station setup. The page shows the atmospheric corrections used for the measurements from this station and the refraction and sphericity parameters.



  • Atmospheric correction: shows if atmospheric corrections was used.

  • Temperature (°C): the temperature value in degrees Celsius.

  • Pressure (mb): the pressure value in millibar.

  • Humidity (%): the humidity value in percent.

  • Atmospheric PPM: the calculated PPM considering all parameters.

  • Refraction and sphericity: shows if refraction and sphericity parameters was used.

  • Refraction coeff.: value for the refraction.

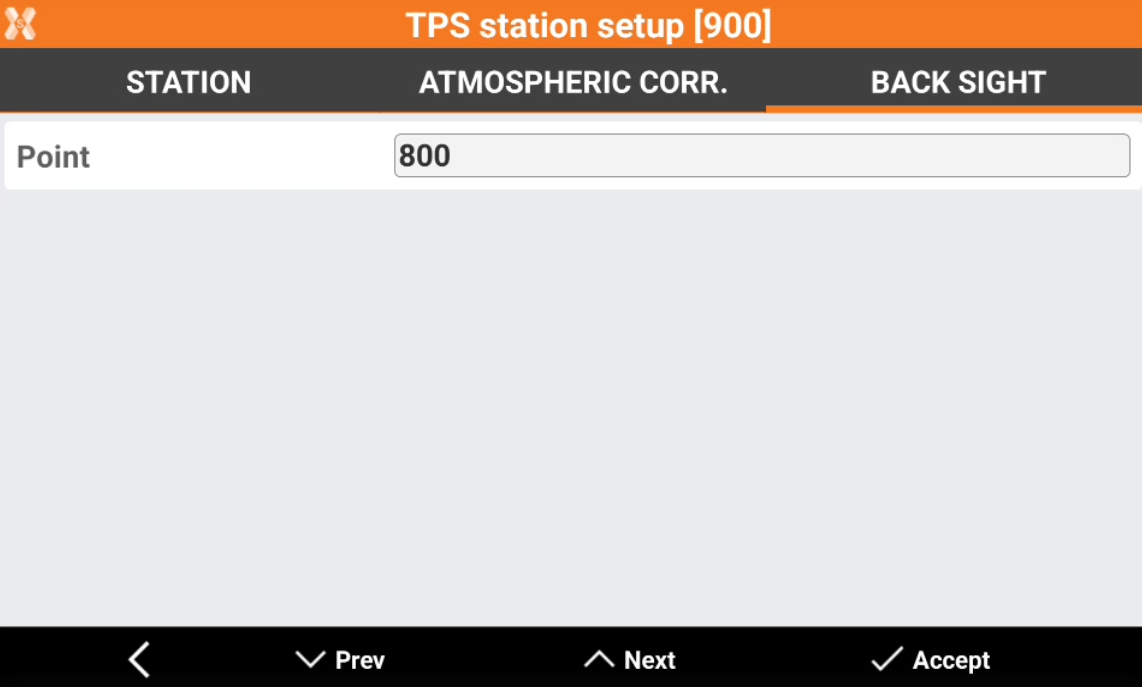

Back sight (TPS only)

• Th Back sight page is available for TPS station setup. The page shows the used back sight for the orientation.



  • Point: the point ID of the back sight point.

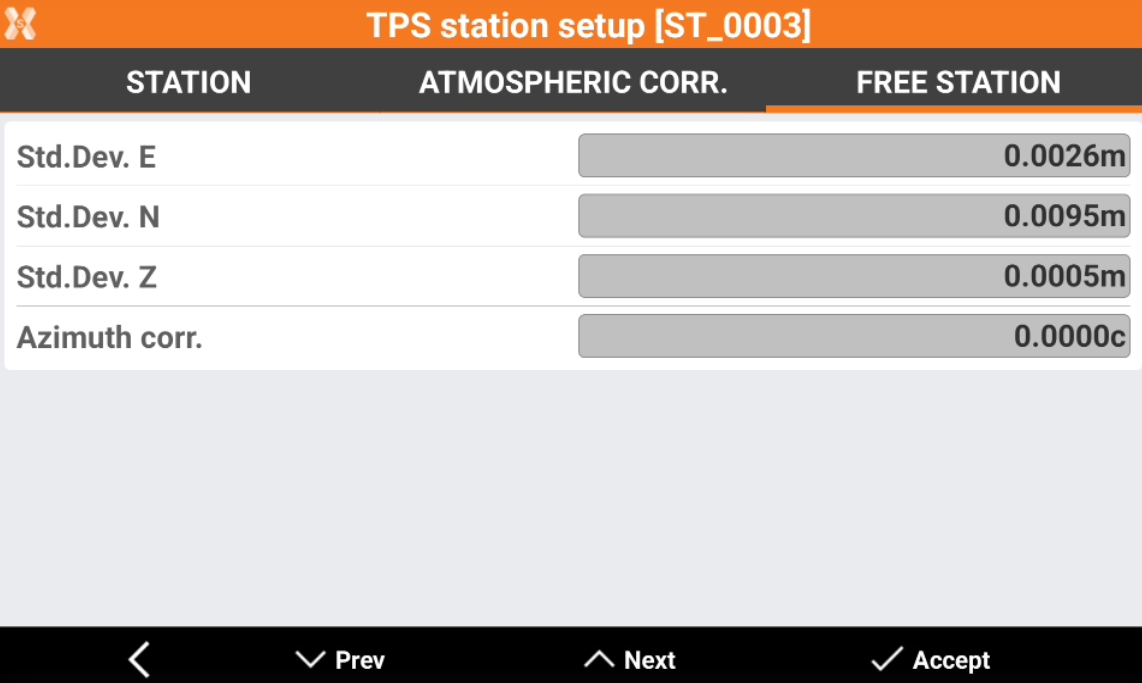

Free station (TPS only)

• The Free station page is available for TPS stations setup in case the orientation is a free station. It shows the free station results.



• Standard deviation E,N,Z: the value of the standard deviation in east, north and elevation.

• Azimuth corr.: the applied azimuth correction.

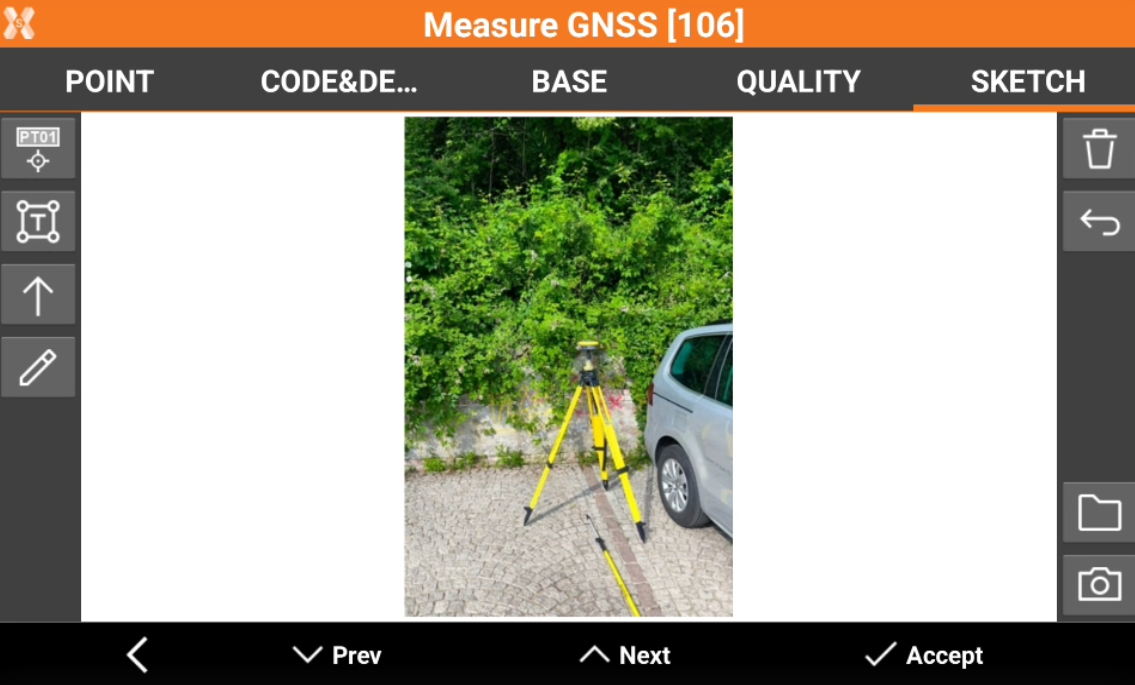

Sketch

• Sketch page allows to view the photo assigned to a point, load or take a new photo or draw on the image to have a picture of the topographic point.



  • : creates a text box with point name, coordinates and codes on the picture. Select and drag to move the text box.



  • : creates a text box with free text. Select and drag to move the text box.

  • : creates an arrow. Select and drag to move the arrow. Click on to change icon to rotation to rotate the arrow.



  • : enables the free drawing mode.

  • : deletes sketch and photo.

  • : restores original content

  • : loads a photo from the controller internal memory. The image must be in the Images folder and has to be in .jpg or .jpeg format.

  • : starts the application allowing to shoot a photo and save it.
