Pole offset

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png

  • Calculates the position of an hidden point by a distance from a measurement with pole tilted in the distance direction.

Available for GNSS receivers with IMU sensor.


  • Open the GPS Measure mode page.

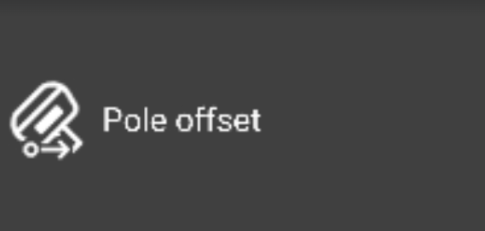

  • Select Pole offset.

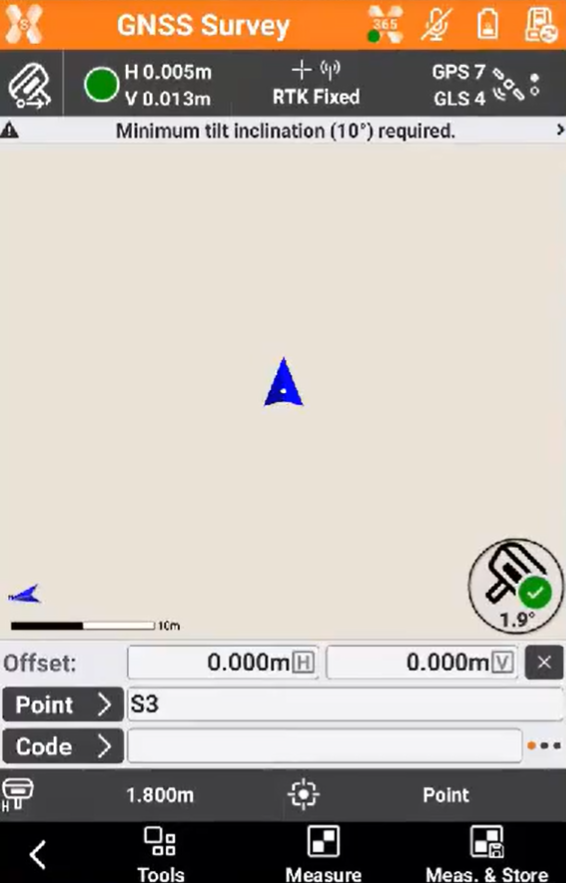

  • A new bar is visible with the possibility to enter the horizontal and vertical offset in the field Offset.

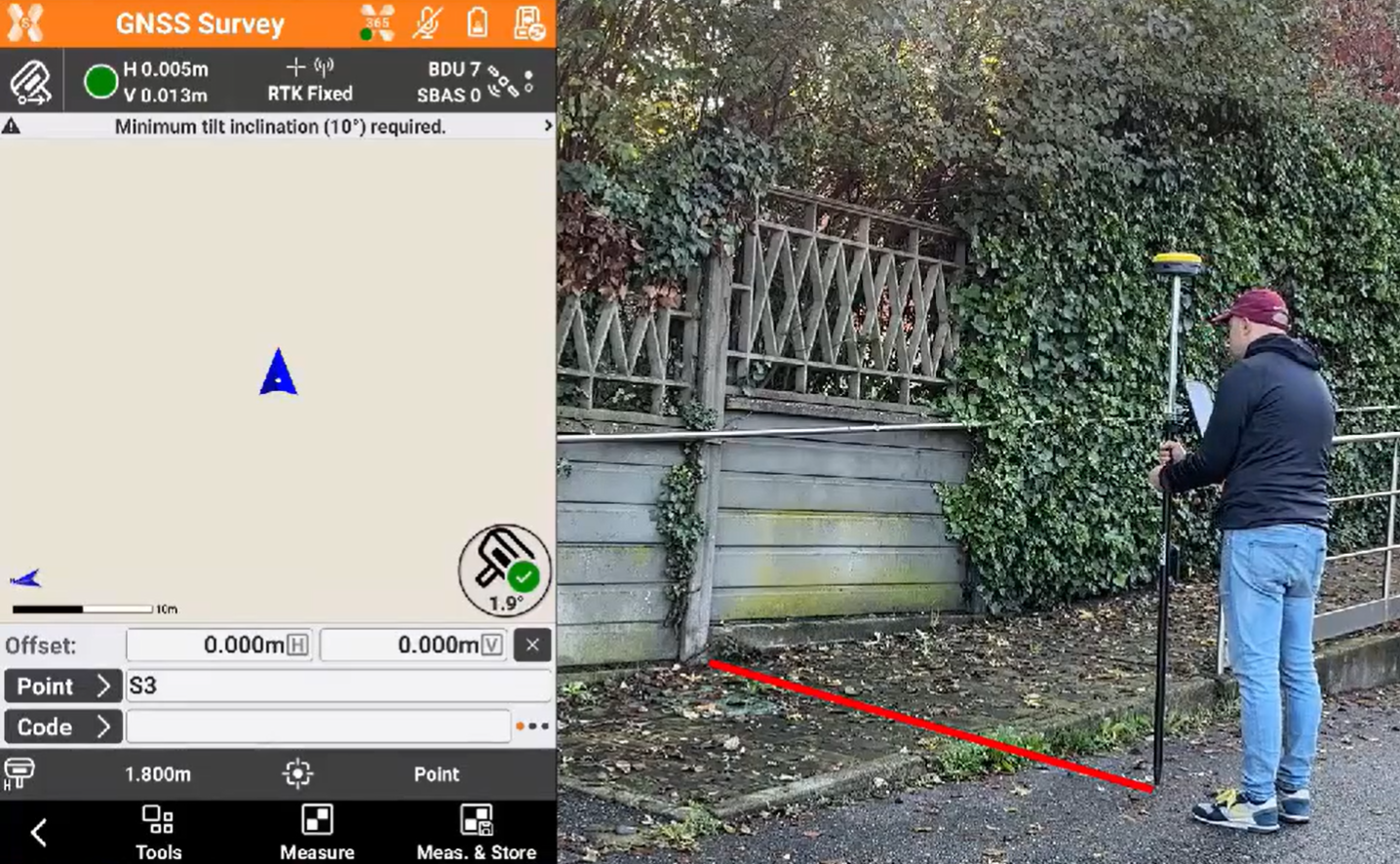

  • Measure and enter the offset from the pole to the hidden point.

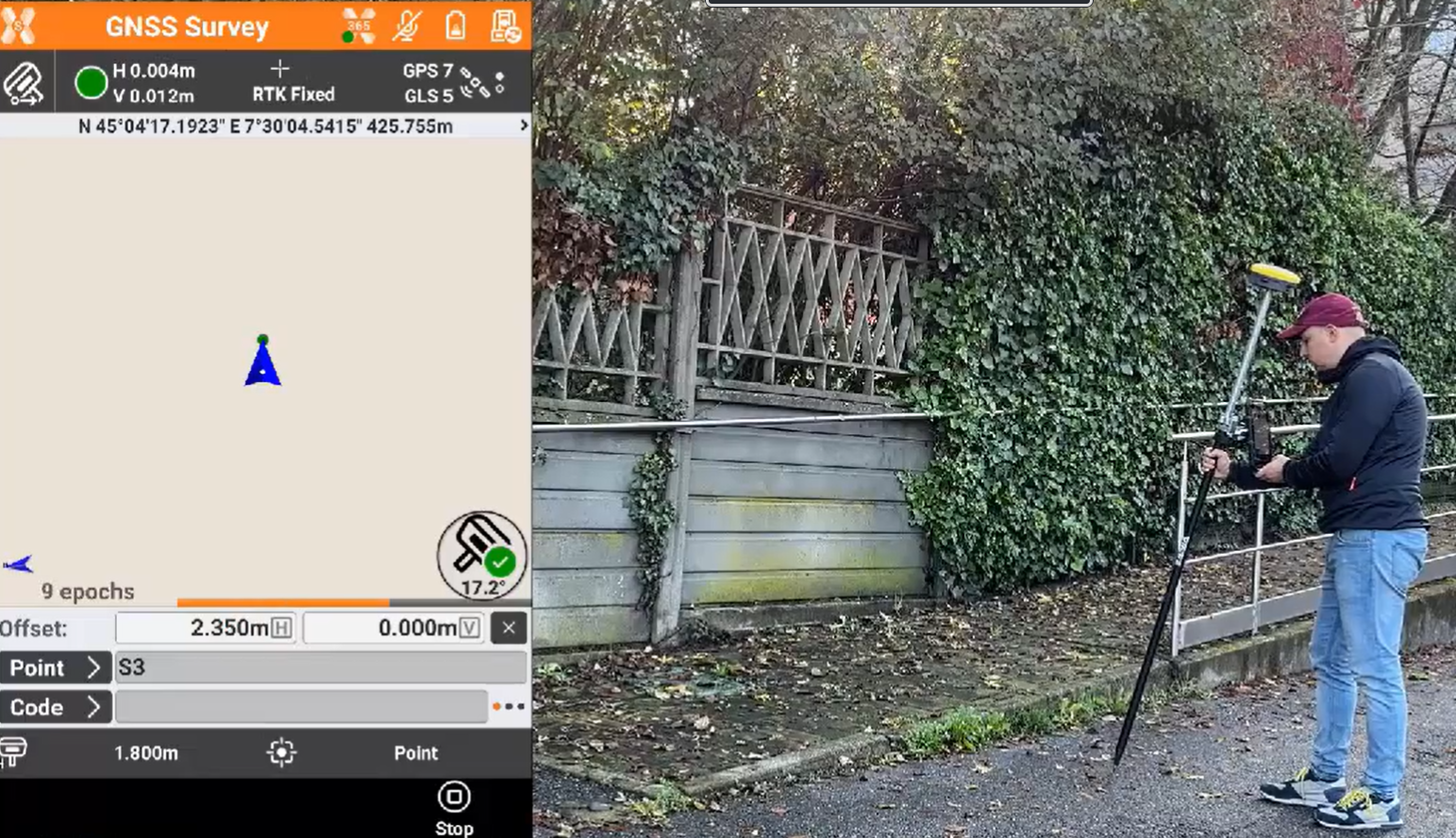

  • Tilt the pole in the opposite direction of the hidden point and measure the point.


  • The hidden point is calculated.
