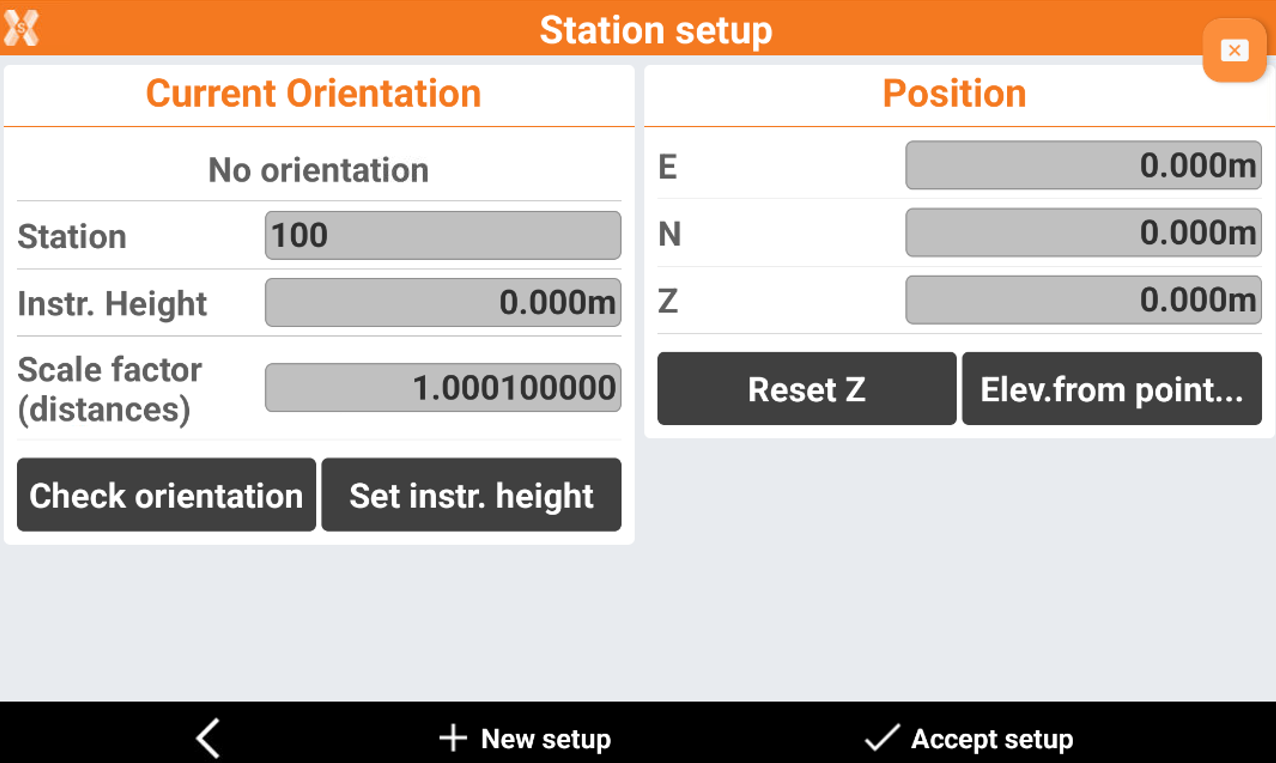

Station setup tools

• After the setup has been performed, it is possible to access different tools.



  • Check orientation: to check if the orientation of the station is still valid or if the orientation must be done again.

  • Set instrument height: to change the height of the instrument.

  • Reset Z: to reset the station elevation.

  • Elevation from point: to calculate the station elevation from reference points.

Check orientation

|

• The function is used to check if the orientation of the station is still valid or if the orientation must be done again.

• Click Station setup.

• Click Check orientation.

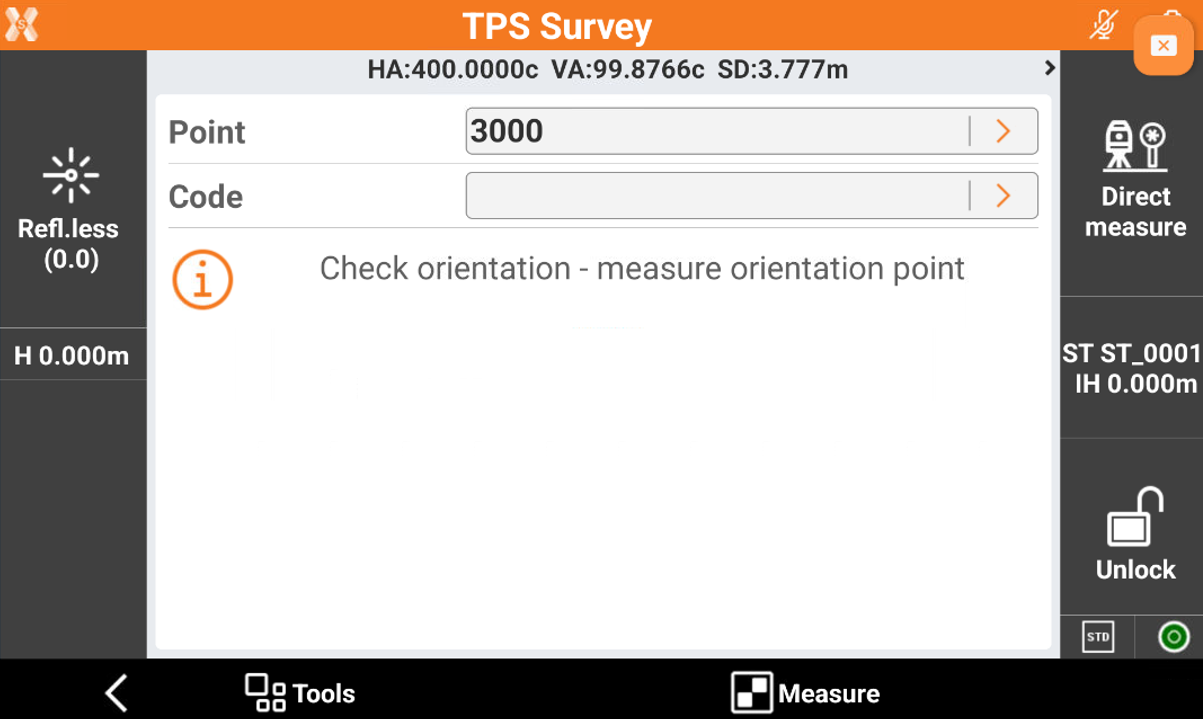

• Aim the orientation point and press Measure.

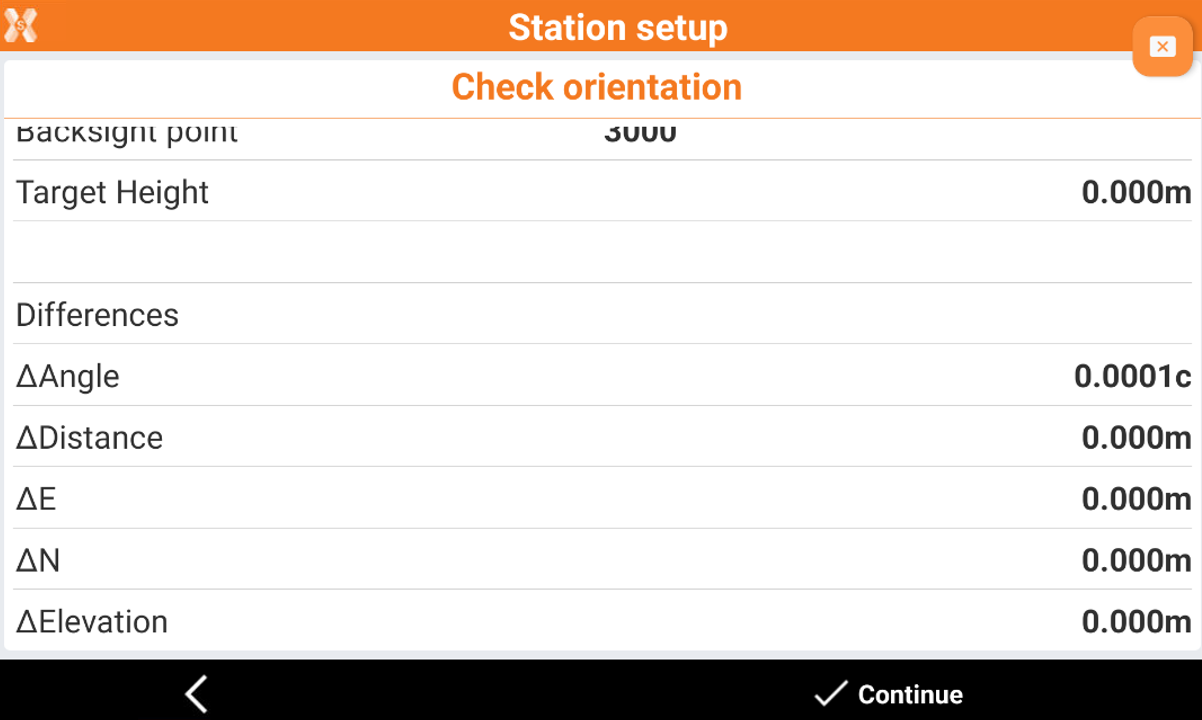

• A report with the difference is displayed.



• The software asks if this measurement should be used as a new backsight orientation for subsequent measurements. It is also possible to adjust all previous measurements with the new setting.

Set instrument height

|

• The tool allows to change the height of the instrument.

• Click Station setup.

• Click Set instrument height.

• The software asks if you would like to change the instrument height of all measurements for the current setup.

• Enter the new height. The elevations of all measured points are recalculated.

Reset Z

| |

• The tool is used to reset the station elevation.

• Click Station setup.

• Click Reset Z and confirm the selection.

• The value for the station elevation is set to the previous elevation.

Elevation from point

| |

• The function allows to calculate the station elevation from a reference point.

• Click Station setup.

• Click Elevation from point.

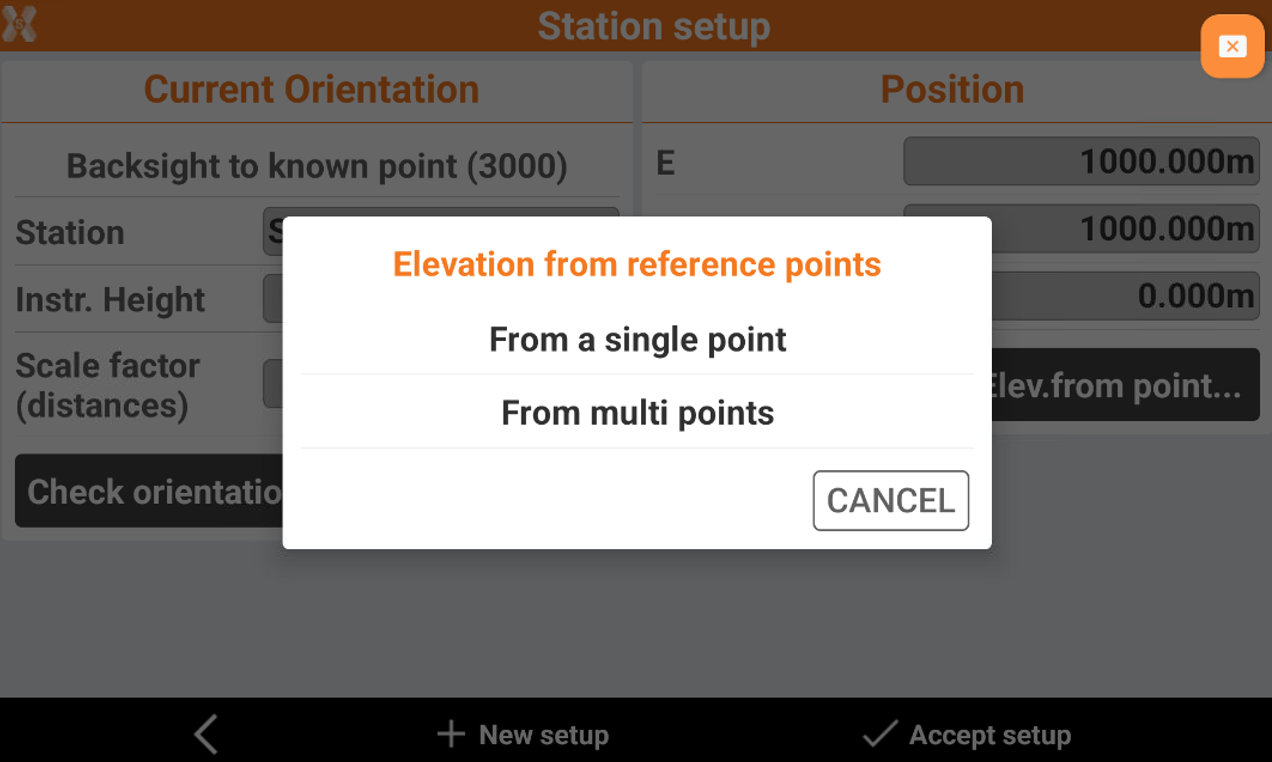

• Select if elevation is calculated from a single point or from multi points. In this example select From a single point.

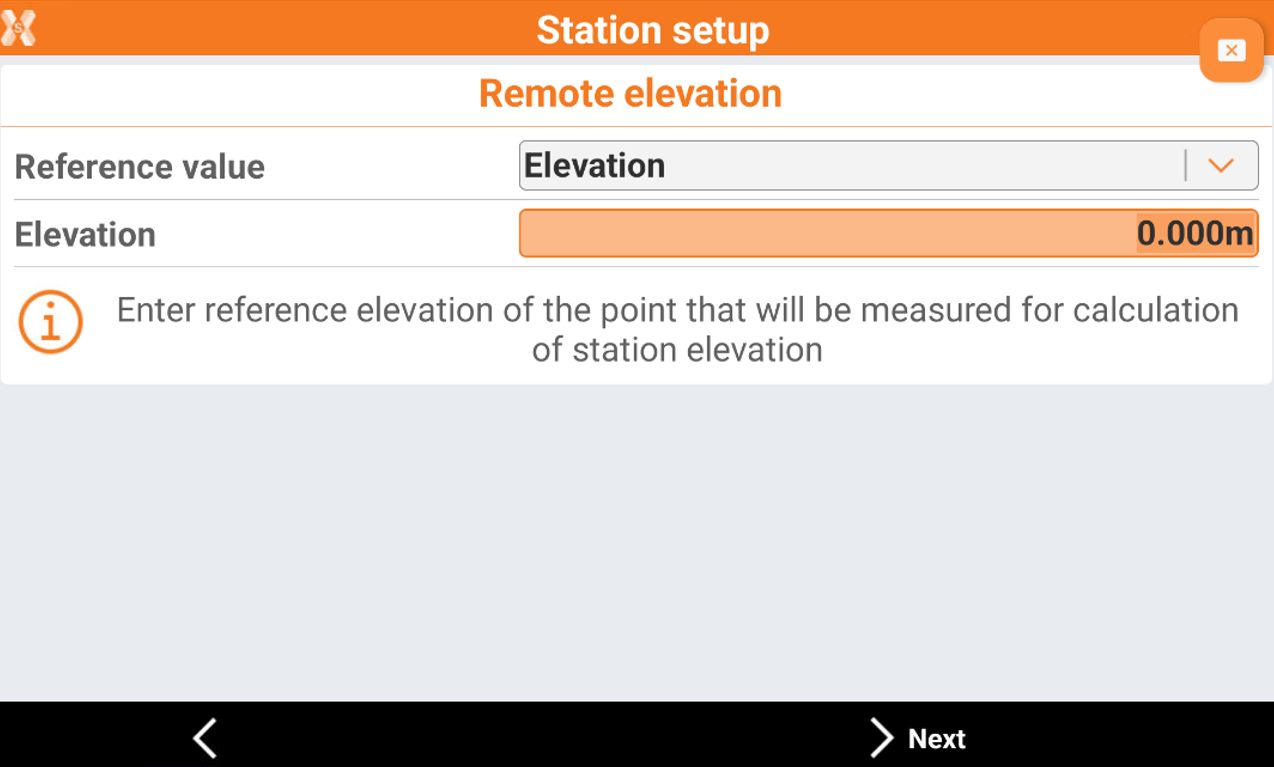

• In the next page enter the information on the reference elevation.



  • Reference value:

    • Elevation: enter reference elevation of the point that will be measured for calculation of station elevation. The elevation is entered in the field Elevation.

    • Point: select reference point from list of points or from CAD that will be measured for calculation of station elevation.

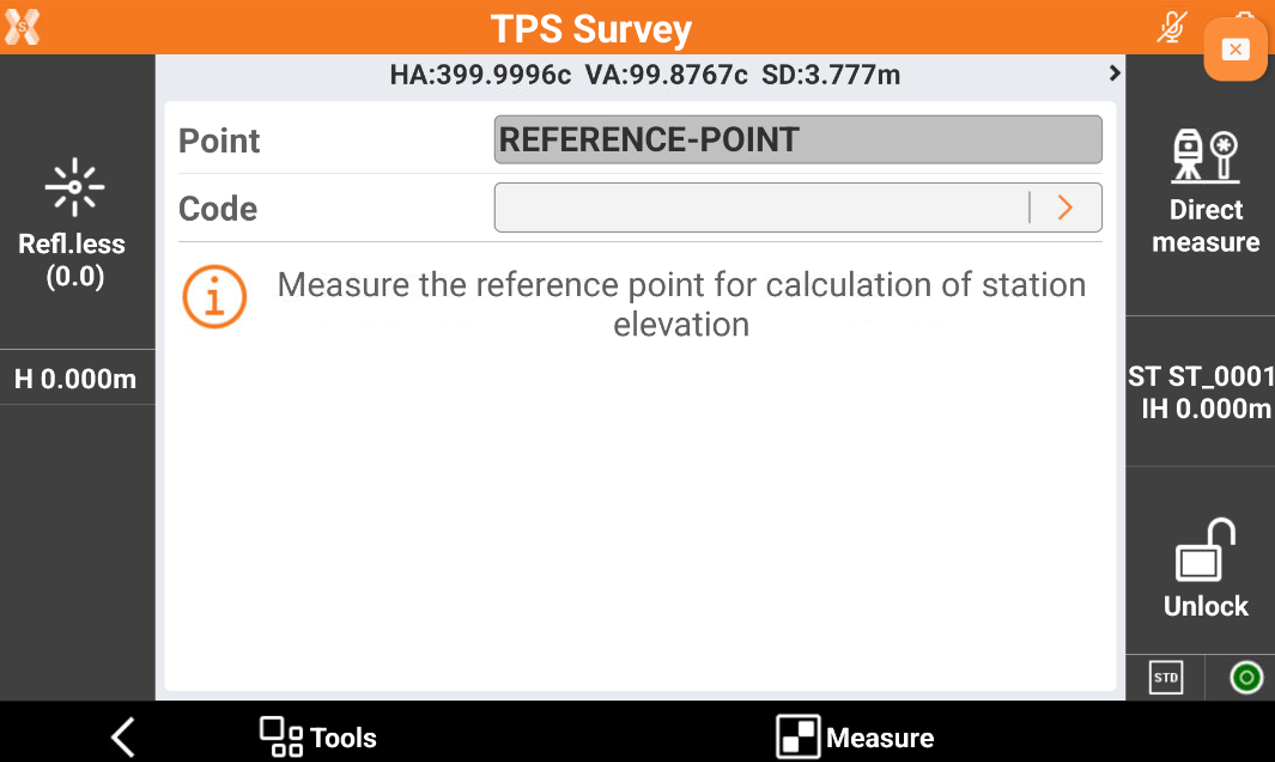

• Click Next to measure the reference point for the elevation calculation.

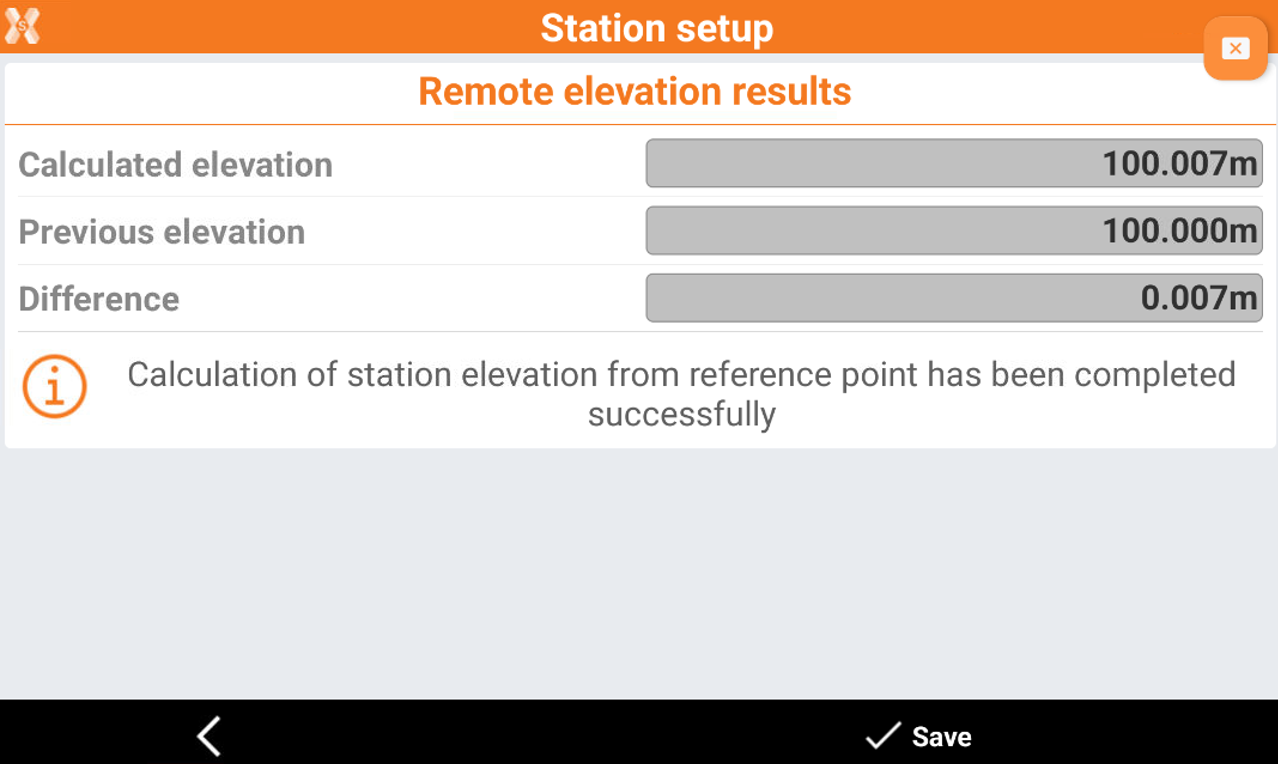

• The software shows the remote elevation result. Click Save to accept the result.



Elevation from multiple point

• The function allows to calculate the station elevation from multiple reference point.

• Click Station setup.

• Click Elevation from point.

• Select if elevation is calculated from a single point or from multi points. In this example select From multi points.

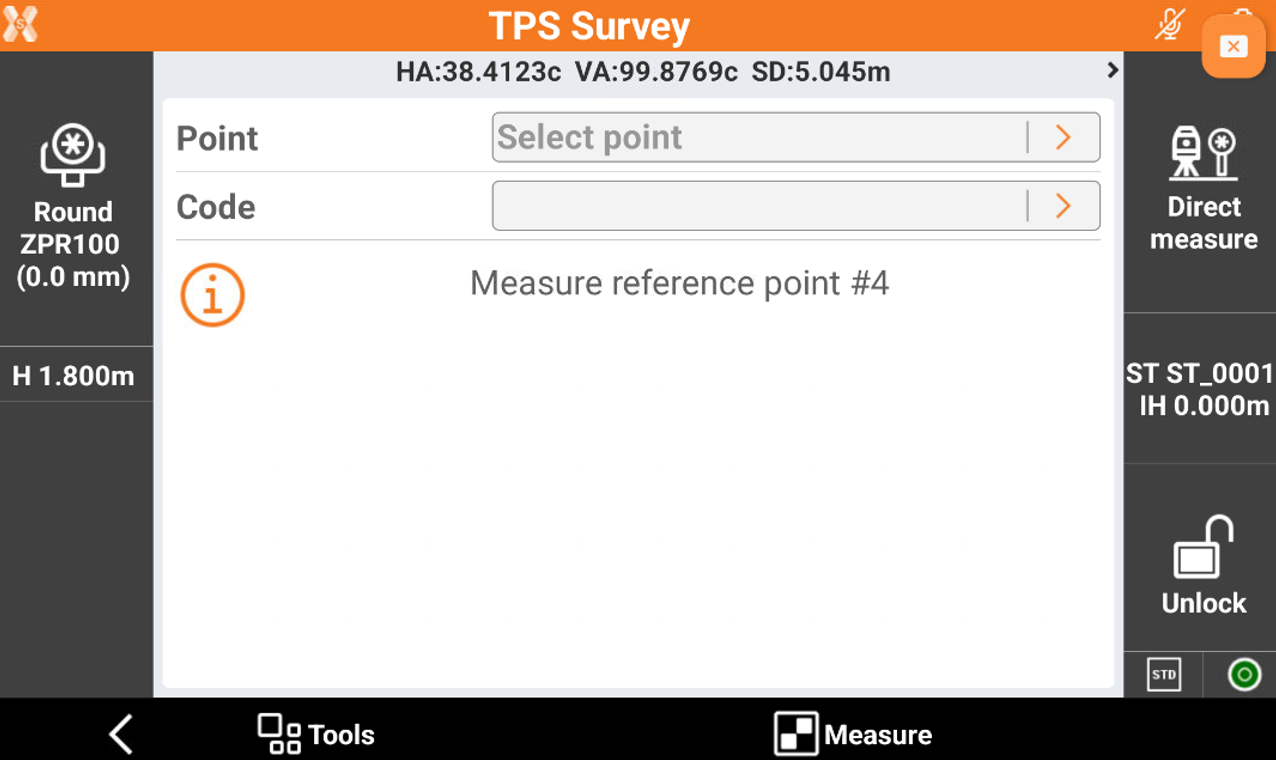

• In the next page click Add to measure the first reference point. You can select the reference point from the list of points.

• Proceed to measure additional reference points.

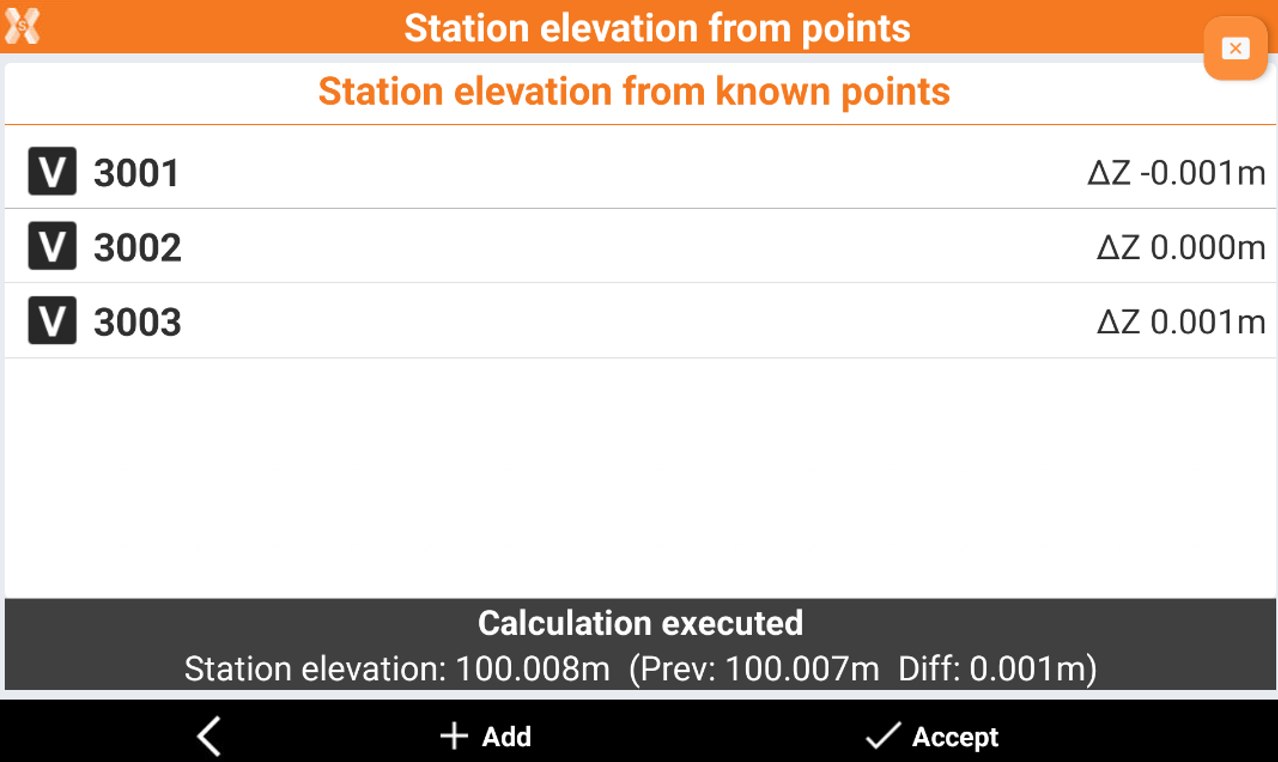

• The result can be evaluates in a table. Click Accept to save the result.
