The Report creates a document that has information about selected objects including information about the length, the area and the number of vertices.
-
Select Info.
-
Select Report.
-

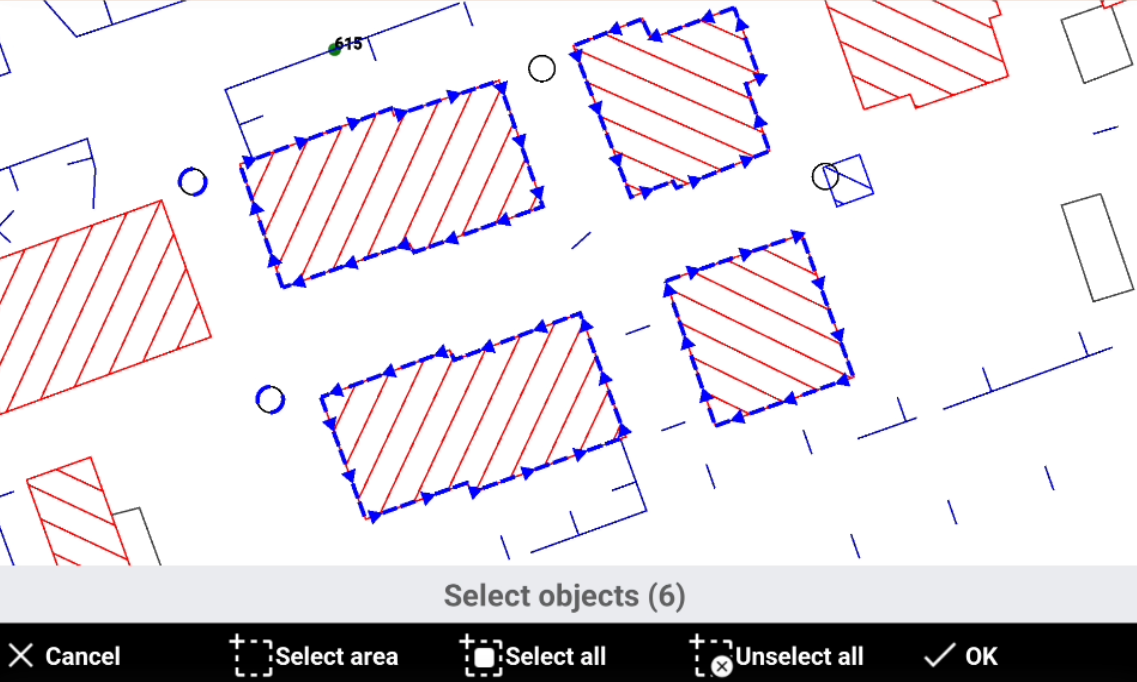

Select the objects in the CAD for which you want to generate.
-
Cancel: cancel the current operation.
-
Select area: select all objects inside the defined area.
-
Select all: select all CAD objects.
-
More options: after object are selected, click here to access additional options:
-
Select all: select all CAD objects.
-
Unselect all: unselect all CAD objects that have been selected.
-
Invert selection: inverts the selection. Selected elements become unselected, and unselected elements become selected.
-
-
OK: confirms the selection.
-
-

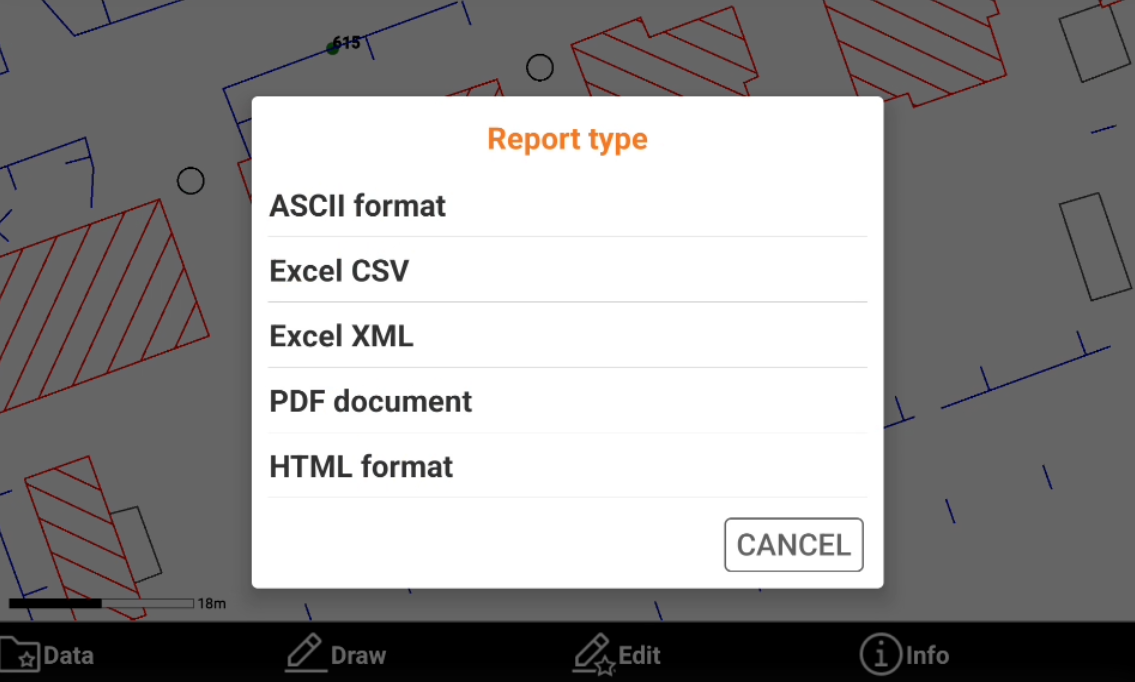

Select the report type from the list.
-

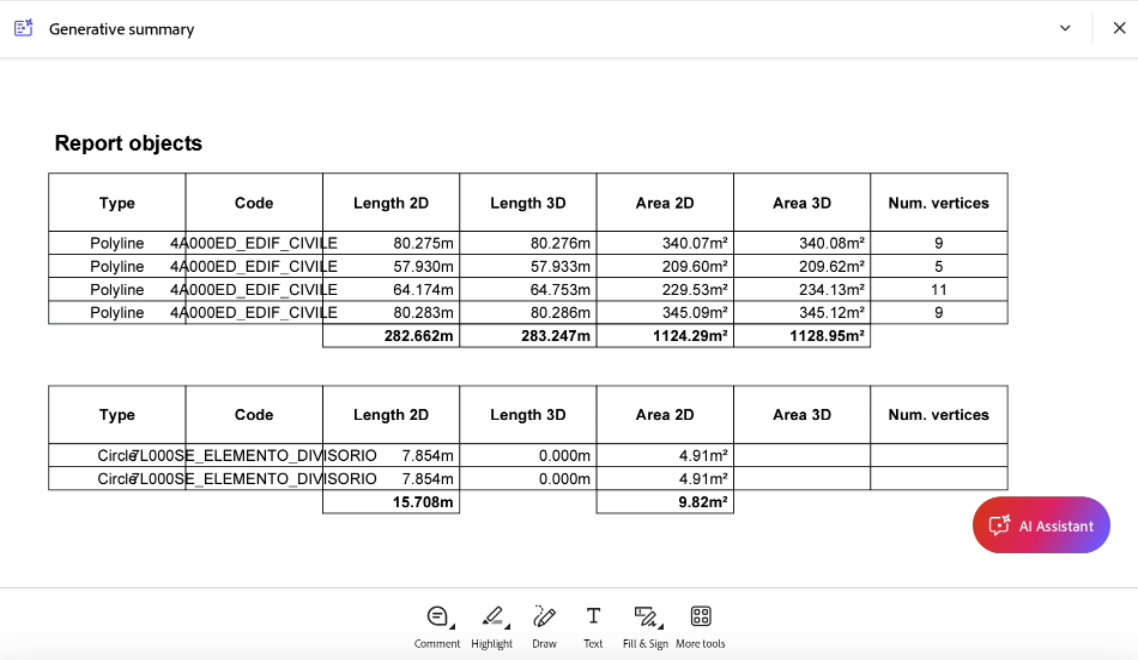

Save or export the generated report.
