Distance between point and object

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • The Distance between point and object command provides information about the distance between a point and an object.


  • Select Info.

  • Select Dist.Object.

  • Select the reference point in CAD.

  • Select the object to which to calculate distance.

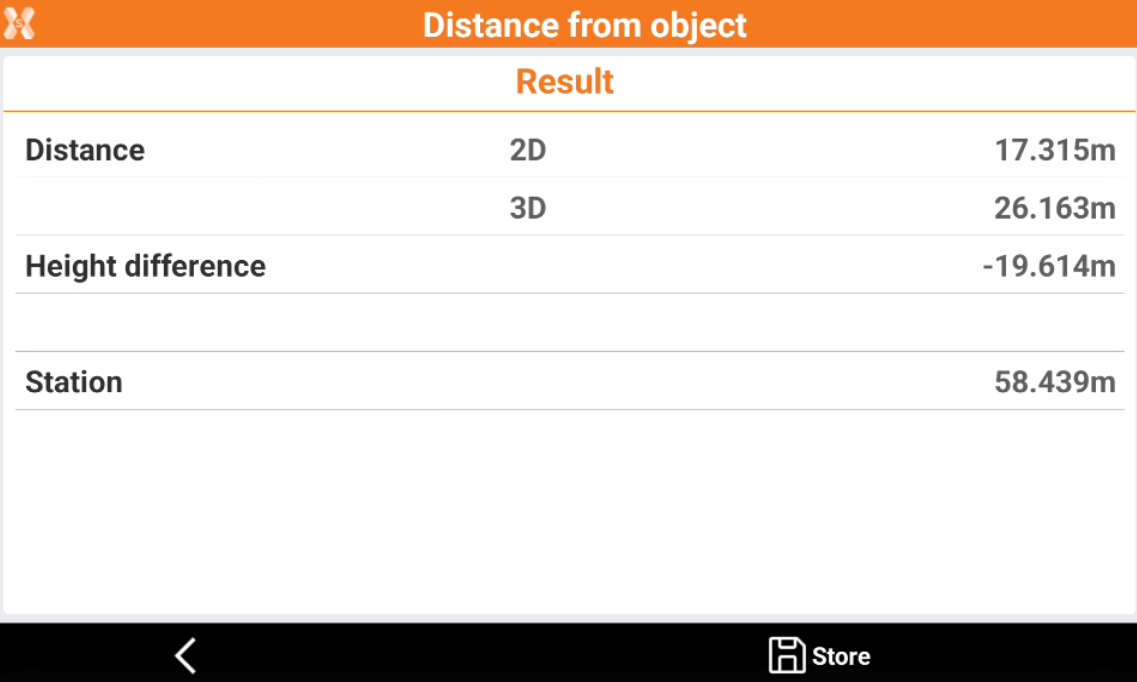

  • The software displays:


    • Distance from the point to the object.

    • Chainage of the projection of the point to the object.

  • Click Store to create a point on projection of the point on the object.
