Import and export reference points to different job

  • The software allows to import and export reference points from the current job to a different job.


  • Click Job.

  • Click Points/Measurements/Codes.

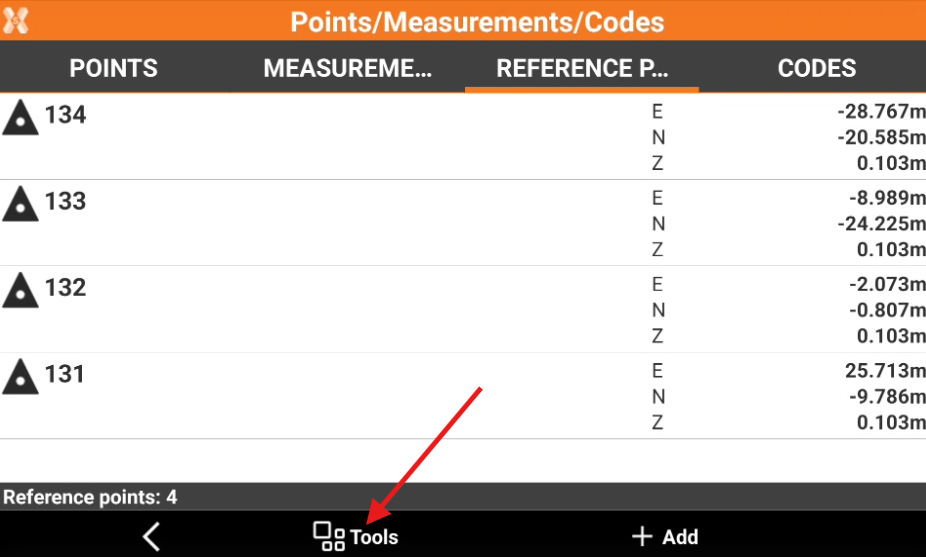

  • Open the Reference points tab.

  • Click Tools to open the list of available tools.


Import reference points from another job

  • Click Tools.

  • Click Save/Load.

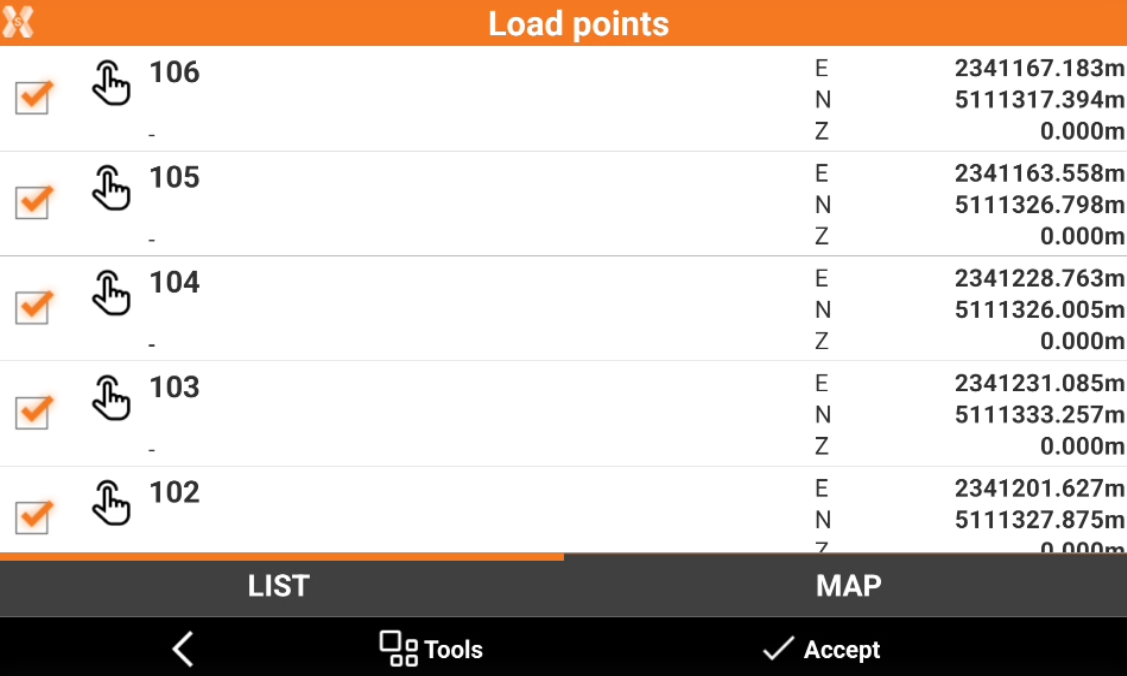

  • Select Load points from job.

  • Select the job from the list of available job.

  • Check the reference points from the list, or click Tools to use Selection rules or select/deselect all the points.


  • Click Accept to import the selected points in the current job.

Export reference points to another job

  • Click Tools.

  • Click Save/Load.

  • Select Save points to job.

  • Check the points from the list, or click Tools to use Selection rules or select/deselect all the points.

  • Select the job from the list of available job to export the reference points to the selected job.
