Move reference points to points table

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • It is possible to transfer reference points from the Reference points list to the Points list.


  • Open the Job tab.

  • Select Points/Measurements/Codes.

  • Open the Reference points tab.

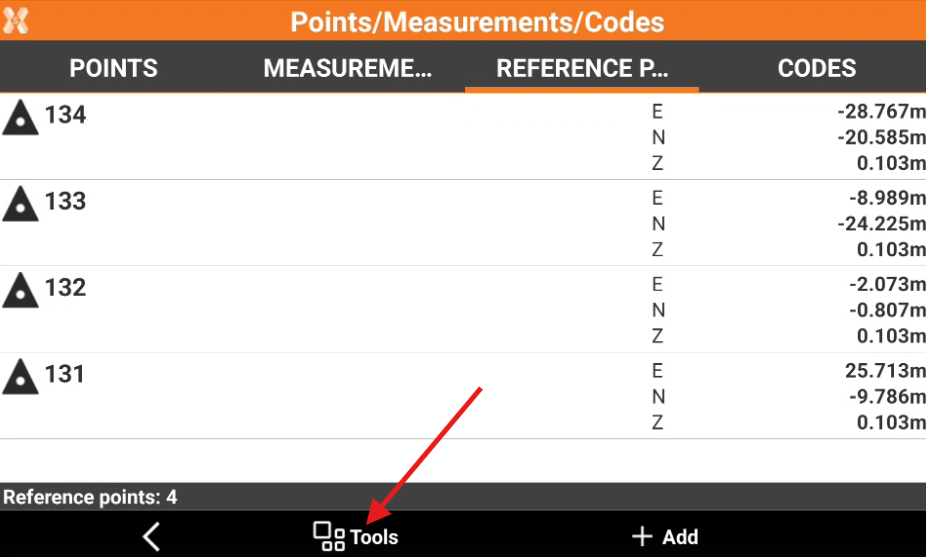

  • Select Tools to open the list of available tools.


  • Select Save/Load and Transfer reference points to points.

  • Check the points from the list, or tap on Tools to use Selection rules or select/deselect all the points.

  • Select Edit.

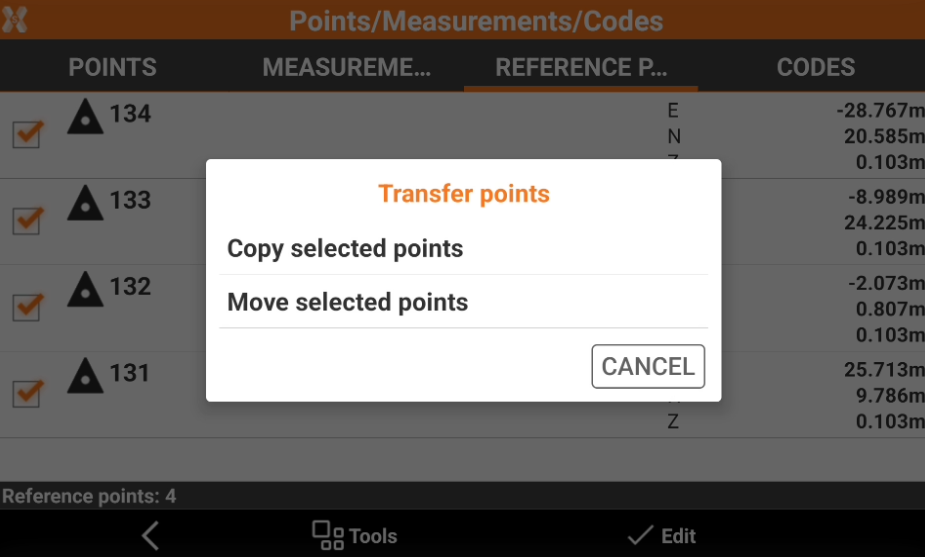

  • Select how to transfer the points from the Reference points list to the Points list.


    • Copy selected points: the selected points are copied to the Points list.

    • Move selected points: the selected points are moved to the Points list. The selected points in the Reference points table are removed.
