Diagram of distance and elevation

X-PAD Ultimate Survey 1.png | X-PAD Ultimate GO 2.png

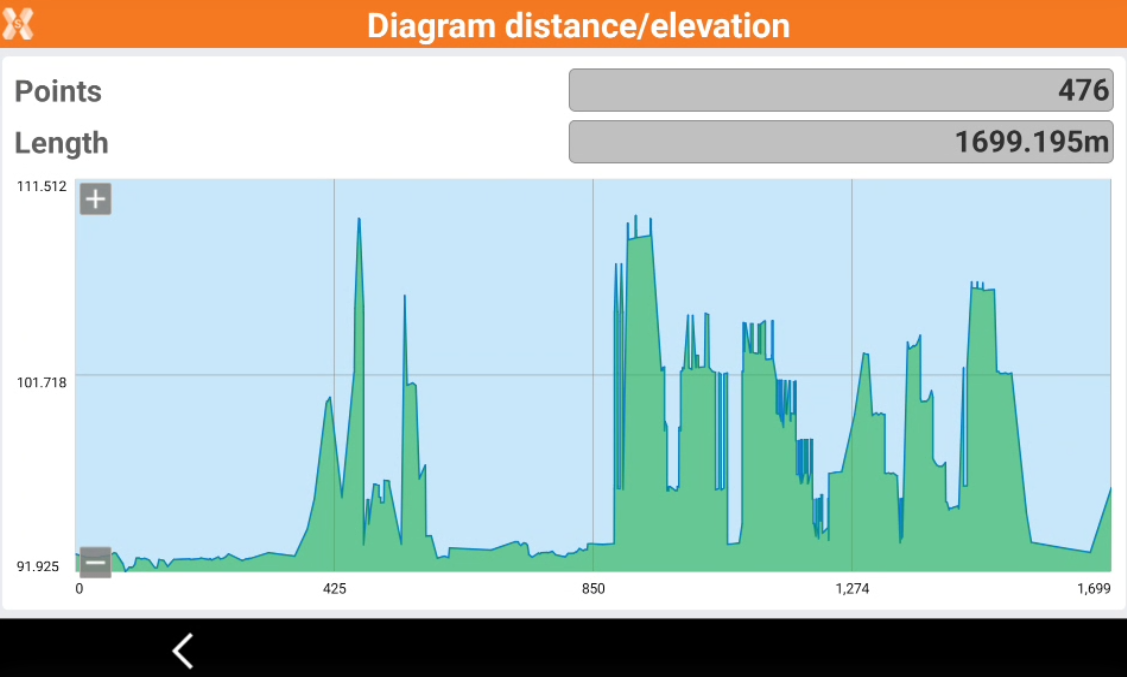

  • The commands allows to display points on a diagram with the distances on the horizontal axis and the elevation on the ordinate axis.


  • Click Job.

  • Click Points/Measurements/Codes.

  • Open the Points tab.

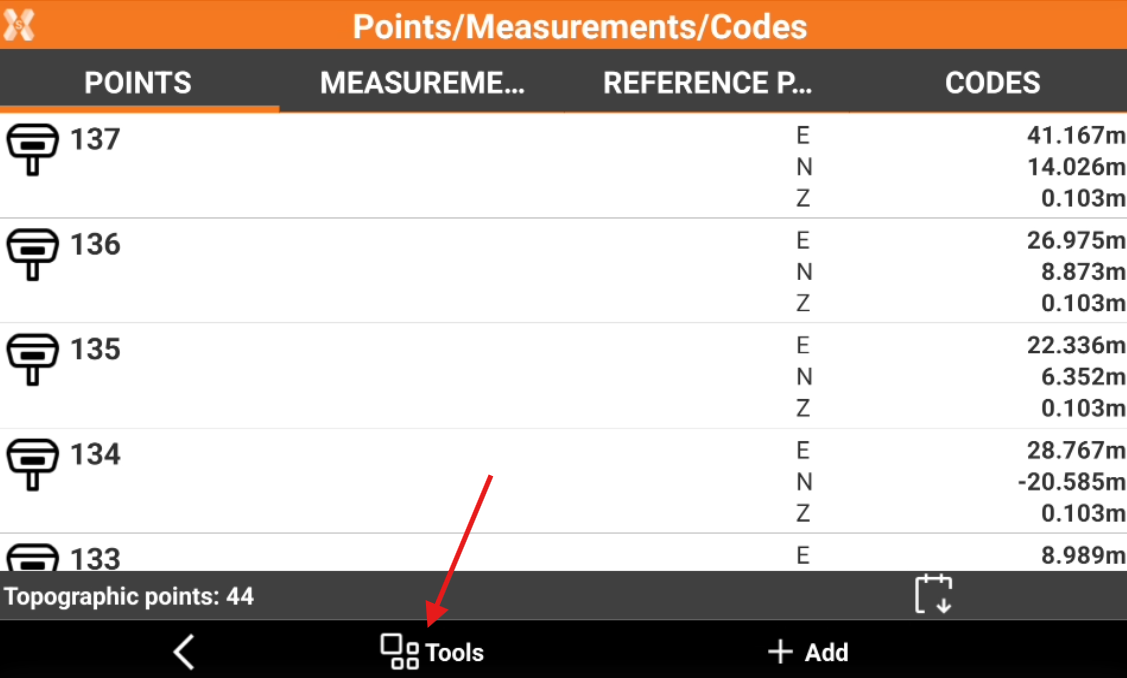

  • Click Tools to open the list of available tools.


  • Click Diagram distance/elevation.
