Distance intersection

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png

  • Distance intersection calculates the position of a new topographic point located at a certain distance from two reference points.


  • Click Edit.

  • Select Int 2 dist.

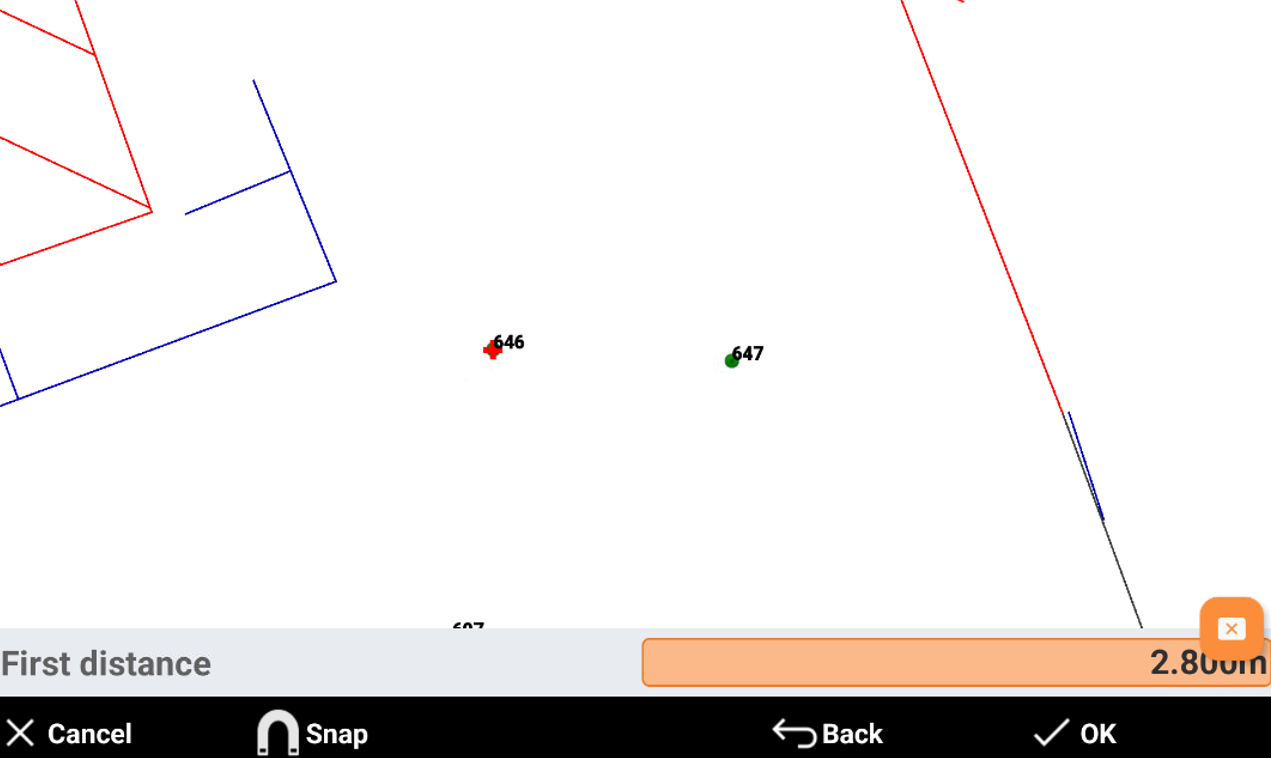

  • Select the first reference point from CAD and enter the first distance.

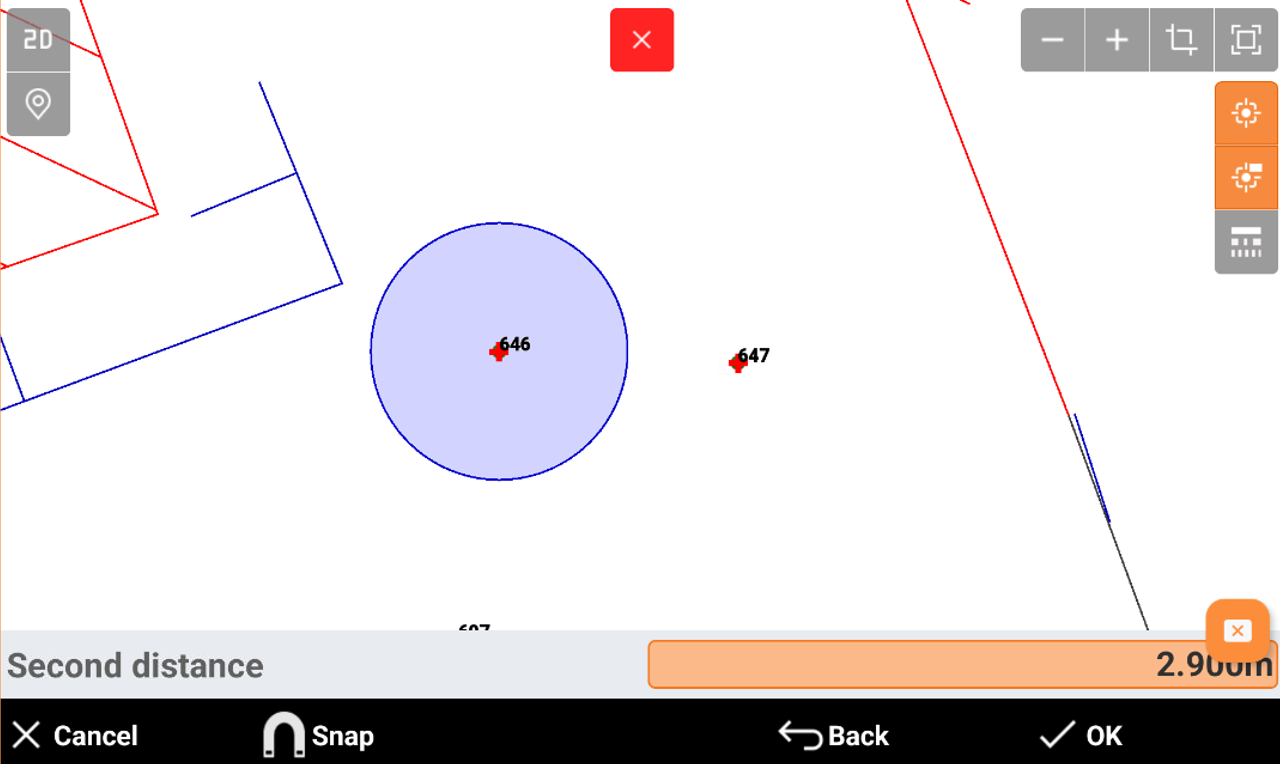

  • Select the second reference point from CAD and enter the second distance.

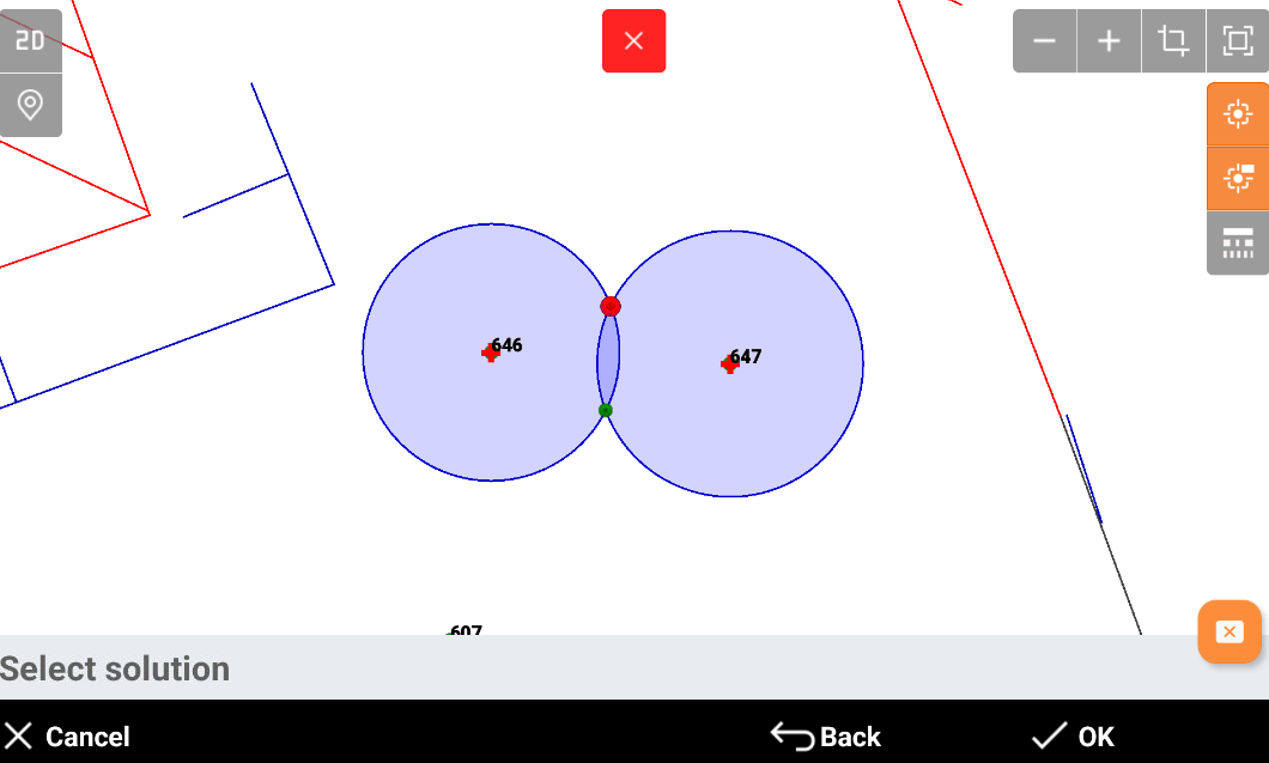

  • Select the desired solution. The two possible solutions are proposed.


  • Click OK to save the point.
