Offset function creates an object parallel to reference object at a defined distance.
-
Click Edit.
-
Select Offset.
-
Select the objects to offset.
-

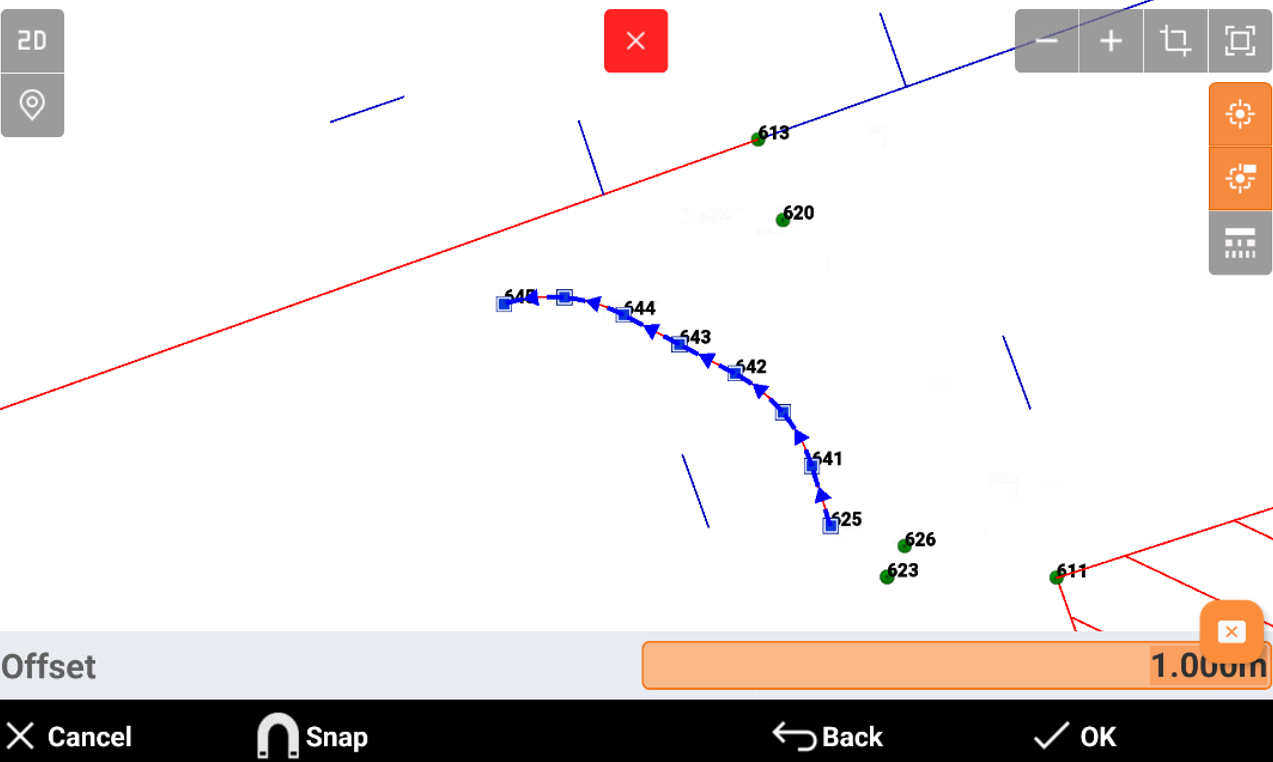

Enter the horizontal offset and the vertical offset.
-

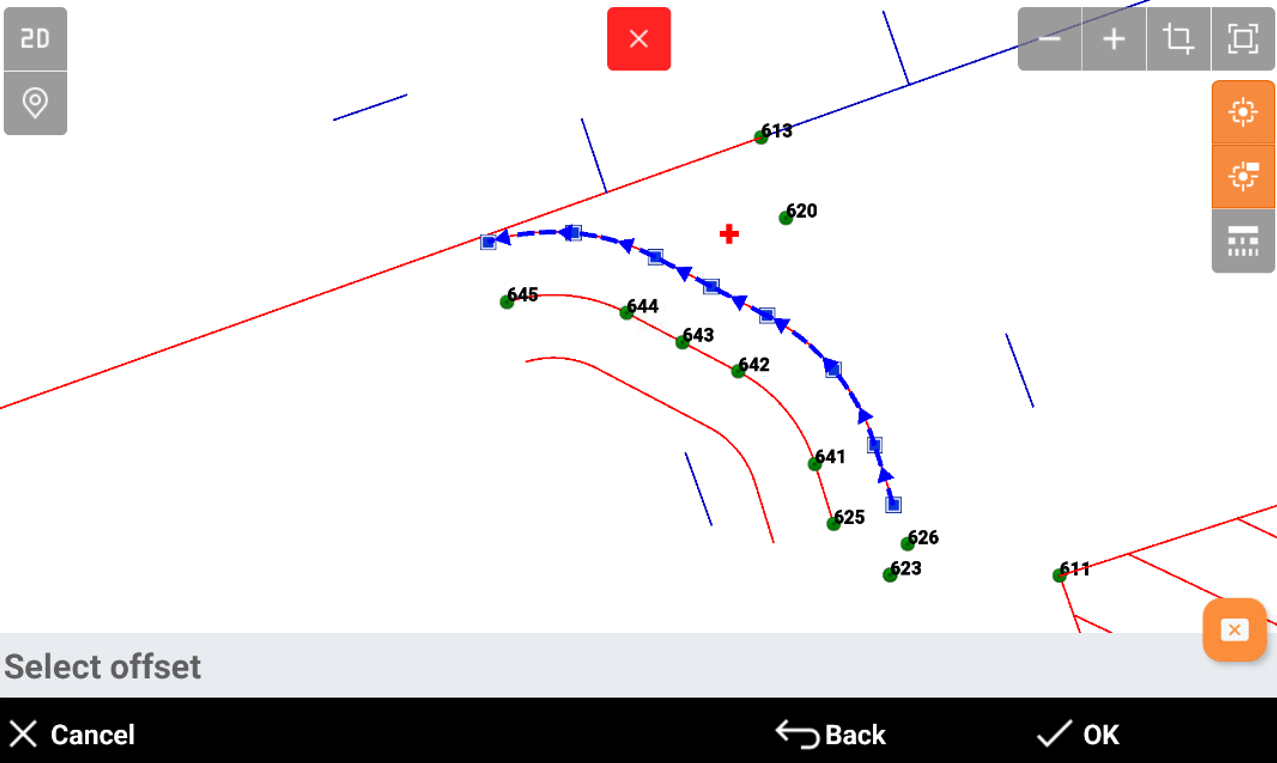

Software proposes the two possible options, select the offset direction and click OK.
-
Enter the offset repetition and click OK.
