Join

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png

  • Join merges several entities so that they have one point in common. Example: Multiple lines that must be managed as a single polyline.


  • Click Edit.

  • Select Join.

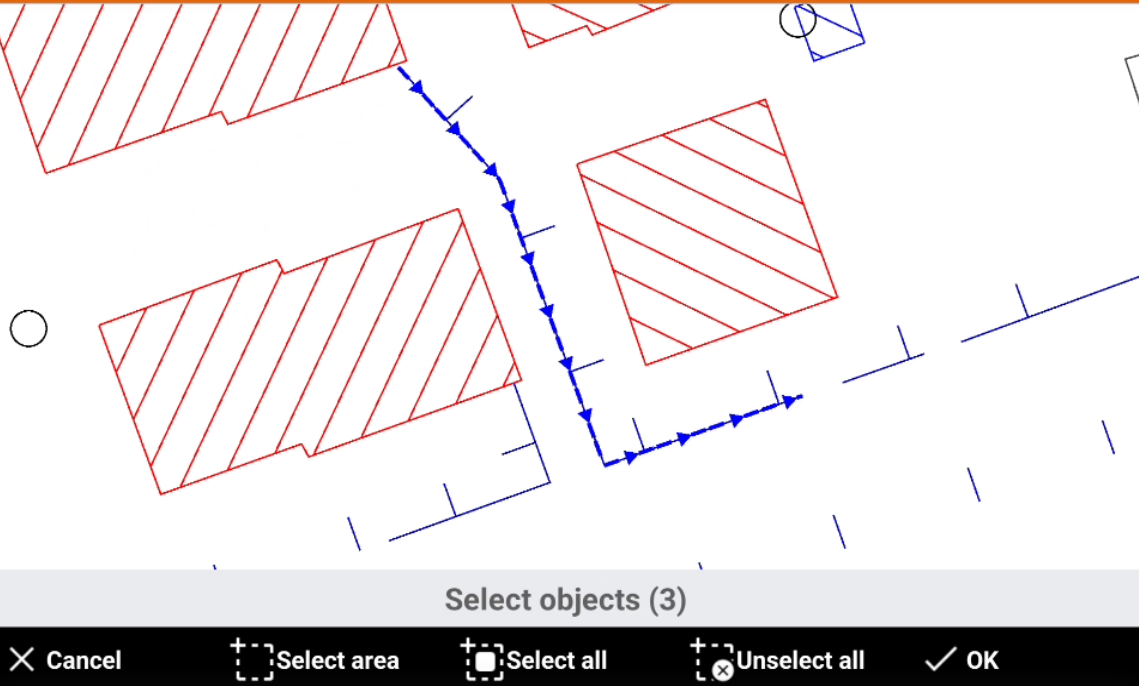

  • Select the object in CAD.


    • Cancel: cancel the current operation.

    • Select area: select all objects inside the defined area.

    • Select all: select all CAD objects.

    • More options: after object are selected, click here to access additional options:

      • Select all: select all CAD objects.

      • Unselect all: unselect all CAD objects that have been selected.

      • Invert selection: inverts the selection. Selected elements become unselected, and unselected elements become selected.

    • OK: confirms the selection.

  • The selected objects are joined together.
