Arc

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png

  • Arc command creates an arc by three points.


  • Click Draw.

  • Click Arc.

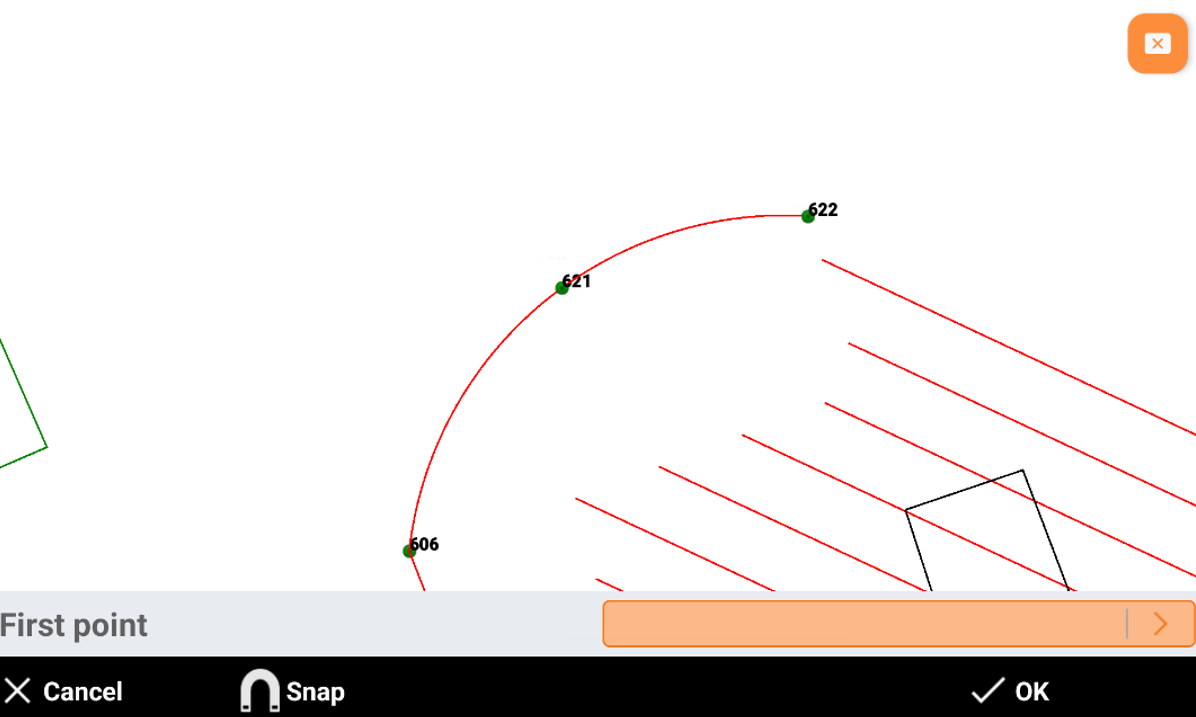

  • Select the first, the second and the third point to create the arc.


    • Cancel: cancels the created arc.

    • Snap: allows to activate the object snap.

    • OK: creates the arc
